UR Pro Series Rental LED Displays
Lightweight Rental LED Displays for Events, Touring & Temporary Installations
The UR Pro Series is designed for rental, touring and live event environments where fast setup, repeated handling and consistent performance are essential.
With a lightweight cabinet design, quick-lock assembly and flexible configuration options, it supports efficient builds while maintaining reliable visual performance across a wide range of applications.
UR Pro Series Rental LED Video Wall Panels
The UR Pro Series combines a lightweight cabinet structure with practical design features that support fast installation, transport and repeated use.
It is designed for AV integrators, rental companies and production teams that need dependable LED systems for events, staging and temporary installations.
Features
- Lightweight cabinet for easier handling
- Fast-lock system for quick assembly
- Seamless panel alignment
- Universal modules for simplified maintenance
- Supports flat, curved and creative layouts
- Built for repeated rental use
Consistent Visual Performance
High brightness and contrast ensure clear output across different environments, from indoor venues to large-scale event spaces.
A high refresh rate supports smooth playback and stable performance for camera-facing applications, live production and fast-moving content.
Universal Modules for Easy Maintenance
Standardised modules simplify maintenance and reduce downtime.
Modules can be removed and replaced quickly, allowing servicing to be carried out without disrupting the full display.
Built-In Protection for Rental Use
Protective design features help reduce the risk of damage during transport, rigging and dismantling.
These include reinforced edges and structural elements that improve durability across repeated use cycles.
Semi-Covered Module Shell Design
The UR Pro Series features a refined semi-covered module shell that helps keep the cabinet slim while improving heat dissipation and overall panel flatness.
To protect the electronics during transport and handling, the module includes built-in anti-collision pads that shield the PCB and reduce the risk of damage — making long-term maintenance easier and more reliable.
Flexible Screen Configurations
The UR Pro Series supports a range of layouts including flat, curved and right-angle installations.
Multiple cabinet sizes allow flexible splicing, making it suitable for a wide range of event and staging requirements.
Tool-Free Maintenance

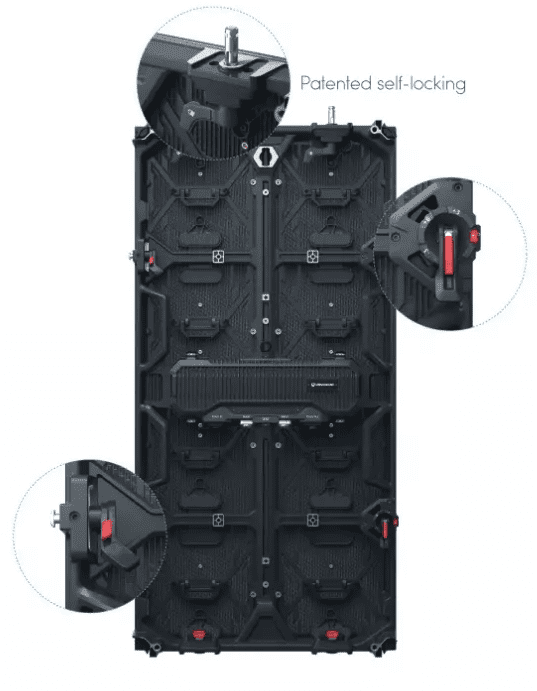

Advanced Side Locking System
Innovative angular locking mechanism provides angle at adjustments (0°, ±3°, ±6°).
Innovative patented auto-locking system at top and bottom enables fast and simple assembly.
Versatile Installation Options
Supports both hanging and ground-stacked setups using standard rigging and support systems.
Suitable for indoor and outdoor event environments depending on configuration.
Multifunctional Splicing
The cabinet design with the 500*1000 and 500*500 sizes allows for flexible splicing to meet the diverse needs of different installation environments.
90°Splicing
500*500mm cabinet can be cut and 90 spliced at the edges to achieve the effect of vertical display screen
Climbable Handle (optional)
Optional climbing handle is available on the new UR Pro cabinets for easy handling, installation and maintenance.
Windproof Frame
Flexible LED Display Configurations
UR Pro Series cabinet sizes are 500*500mm and 500*1000mm, which can create concave & convex curve and right-angle. Plus, it can combine with flexible cabinets, perfectly realising more creative ideas.
Technical Specifications
The UR Pro Series is available in a range of indoor and outdoor configurations to suit different viewing distances, event environments and installation requirements.
| Type | Indoor | Indoor | Outdoor | Outdoor |
| Model | UR Pro 2.6 | UR Pro 2.9 | UR Pro 2.9 | UR Pro 3.9 |
| LED Type | SMD1515 (Black) | SMD2020 (Black) | SMD1516 (Black) | SMD1921 (Black) |
| Pixel Pitch(mm) | 2.604 | 2.976 | 2.976 | 3.906 |
| Panel Dimensions (WxHxD)/(mm) | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 |
| Pixels Per Panel | 192x192 / 192x384 | 168x168 / 168x336 | 168x168 / 168x336 | 128x128 / 128x256 |
| Panel Weight (kg) | 8.5kg / 12.5kg | 8.5kg / 12.5kg | 8.5kg / 12.5kg | 8.5kg / 12.5kg |
| Arc Lock | (+-6, +-3) | (+-6, +-3) | (+-6, +-3) | (+-6, +-3) |
| Module Dimensions (WxH)/(mm) | 250x500 | 250x500 | 250x500 | 250x500 |
| Processing | Novastar A10s-Pro | Novastar A10s-Pro | Novastar A10s-Pro | Novastar A10s-Pro |
| Brightness (cd/m²) | 1,000 | 1,000 | 4,000 | 4,000 |
| RefreshRate (Hz) | 15,360 Hz | 15,360 Hz | 15,360 Hz | 15,360 Hz |
| Gray scale(Bit) | 16 | 16 | 16 | 16 |
| Colour Bit depth (max) | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 |
| Contrast Ratio | 6000:1 | 6000:1 | 5000:1 | 5000:1 |
| Viewing Angle (H/V) (°) | 140/140 | 140/140 | 140/140 | 140/140 |
| Drive Mode (Scan) | 1/16 | 1/16 | 1/16 | 1/8 |
| Power Consumption (Max./Avg.)(W/m2) | 600 / 200 | 600 / 200 | 680 / 220 | 680 / 220 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP65/IP65 | IP65/IP65 |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| PSU & Others Maintenance | Rear | Rear | Rear | Rear |
| Panel InstallationType | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
* Technical specifications are subject to change without prior notice. Please contact our sales team for the latest information. |
UR Pro Series LED Display Applications
Live Events & Concerts
The UR Pro Series is widely used for concerts, festivals and live productions where fast installation, high brightness and reliable performance are essential.
Touring Productions
Lightweight cabinets and quick-lock assembly systems make the UR Pro Series suitable for touring applications where displays are repeatedly installed, transported and dismantled.
Corporate Events
The UR Pro Series supports presentations, conferences, product launches and awards events where professional large-format display systems are required.
Broadcast & Live Streaming
High refresh rates help deliver stable on-camera performance for broadcast productions, hybrid events and live streaming environments.
Exhibitions & Brand Activations
Flexible cabinet configurations allow the creation of exhibition displays, immersive environments and branded experiences designed to attract attention and engage audiences.
UR Pro Series LED Display FAQs
What are rental LED displays used for?
Is the UR Pro Series suitable for live events and touring productions?
Can UR Pro Series LED displays be used indoors and outdoors?
What refresh rate does the UR Pro Series support?
Can the UR Pro Series create curved LED walls and creative display structures?
What cabinet sizes are available in the UR Pro Series?
Does the UR Pro Series support front and rear maintenance?
Is the UR Pro Series suitable for rental companies and AV integrators?
