GHC Series Fine Pitch LED Displays
Ultra-fine pitch LED displays for control rooms, boardrooms, broadcast studios and professional indoor video wall applications.
The GHC Series is designed for indoor installations where screens are viewed at close range and image clarity can’t be compromised. With fine pixel pitch options down to sub-1mm, it’s suited to control rooms, boardrooms and broadcast environments where detail matters.
The cabinet format follows a 16:9 ratio, making it straightforward to build standard resolution displays without stretching or scaling issues. Combined with a slim profile and lightweight construction, it’s a practical solution for fixed installations where space and access are often limited.
GHC Series
The GHC Series is built around fine pitch LED technology, allowing content to be displayed clearly even when viewed from a short distance. It’s commonly used in environments where users spend extended periods looking at the screen, such as monitoring stations or meeting spaces.
The system is designed to be installed once and run consistently, with front access for maintenance and built-in redundancy to reduce the risk of failure.
Features
- Fine pixel pitch options for close viewing distances
- 16:9 cabinet design for standard resolution builds
- Lightweight cabinets for easier handling and installation
- Wide viewing angles with consistent colour output
- Redundant power and signal support
- Front access maintenance
- Minimal cabling between cabinets
Ultra-Fine Pitch for High-Definition Viewing
Pixel pitch ranges from 0.78mm to 1.5mm, which is suited to environments where people are positioned close to the screen.
This is typically used where:
- Text needs to be read clearly
- Data or dashboards are displayed continuously
- Viewers are seated within a few metres of the screen
16:9 Cabinet Layout
Each cabinet is built to a 16:9 ratio, which simplifies screen configuration.
For installers and integrators, this means:
- Standard resolutions can be achieved without adjustment
- Cabinets align cleanly across larger displays
- Setup time is reduced when building video walls

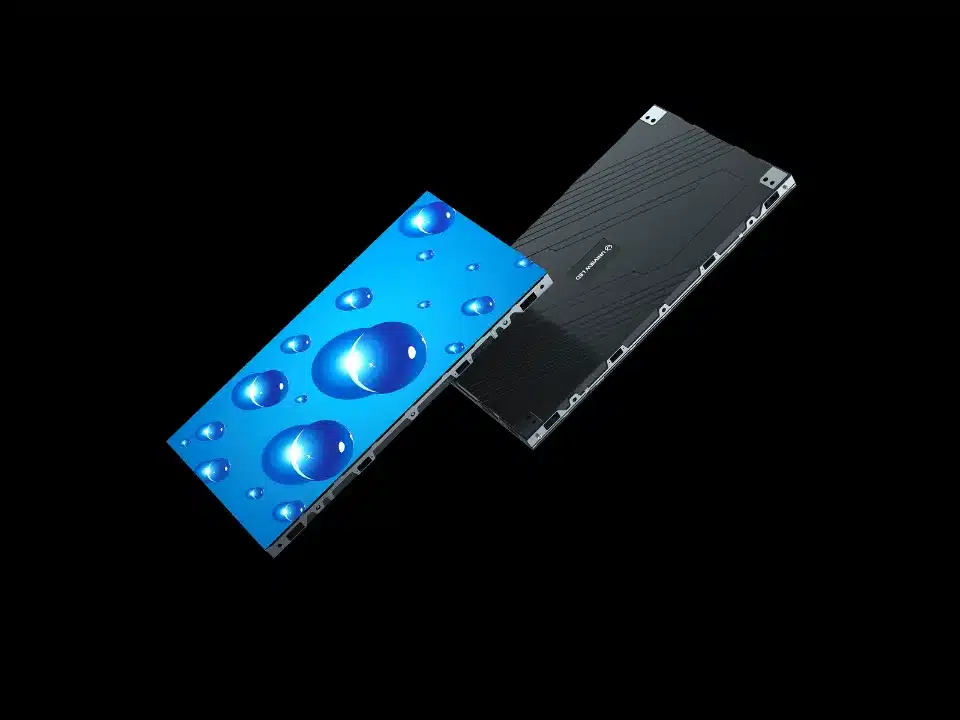

Compact & Lightweight Design
Each cabinet is slim and weighs around 4.2kg, making it easier to handle during installation.
This is useful for:
- Wall-mounted systems
- Installations where structural load is a factor
- Projects with limited installation access
Image Quality & Colour Consistency
The GHC Series is designed to handle content where clarity and colour accuracy are important. It performs well with:
- Presentation content
- Video playback
- Data visualisation
Colour remains consistent across the screen, even when viewed from wider angles.
Built for Continuous Use
The system is designed for environments where the display runs for long periods without interruption.
Common applications include:
- Control rooms
- Monitoring centres
- Corporate environments
The cabinet design helps protect internal components from dust and general wear over time.
Redundant Power & Signal
Backup systems are included for both power and signal.
If a primary source fails:
- The secondary system maintains operation
- The screen continues running without interruption
This is particularly important in environments where downtime isn’t acceptable.
Clean Installation
Cabinet connections are designed to reduce visible cabling between panels.
This helps:
- Keep installations tidy
- Improve airflow behind the display
- Simplify maintenance access

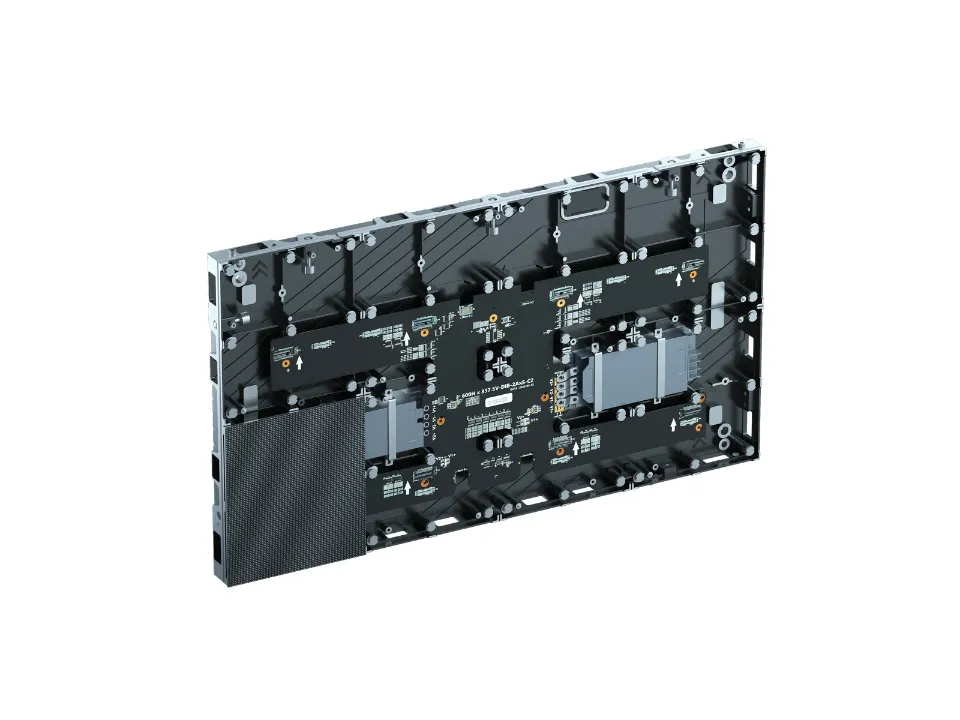

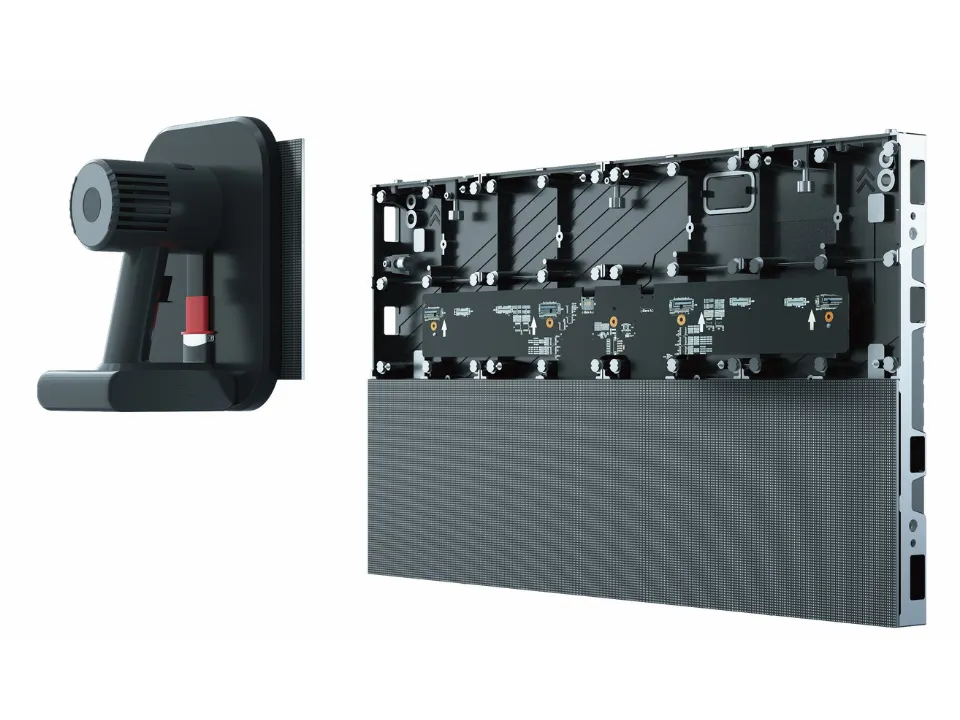

Front Access Maintenance
All servicing can be carried out from the front of the display.
This removes the need for:
- Rear access space
- Removing panels during maintenance
It’s especially useful in fixed installations where the screen is mounted directly to a wall.

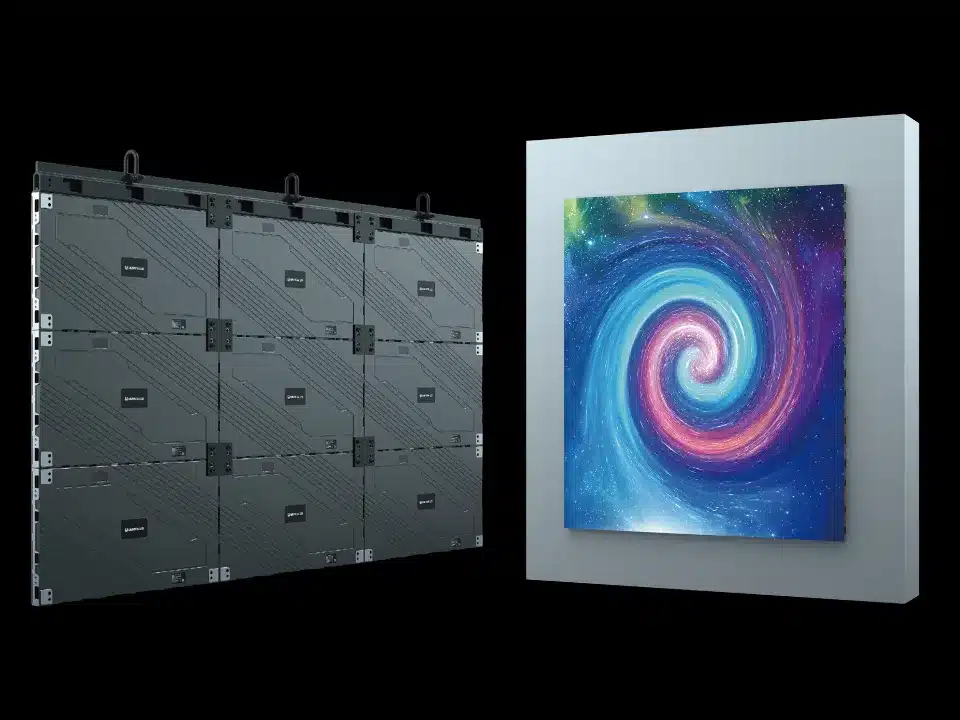

Flexible Installation Options
The GHC Series can be installed in a range of configurations, including:
- Wall-mounted displays
- Suspended installations
- Large-format video walls
This makes it suitable for both permanent installations and integrated AV systems.
Applications
The GHC Series is commonly specified for indoor environments where close viewing distances, image clarity and long-term reliability are critical.
The GHC Series is ideal for:
- Broadcast studios and media production
- Corporate boardrooms and offices
- Control rooms and monitoring centres
- Retail and premium commercial displays
- Museums and exhibition spaces
- Airports, hotels and public venues
Technical Specifications
| Specification | GHC Series |
|---|---|
| Pixel Pitch | 0.78mm – 1.5mm |

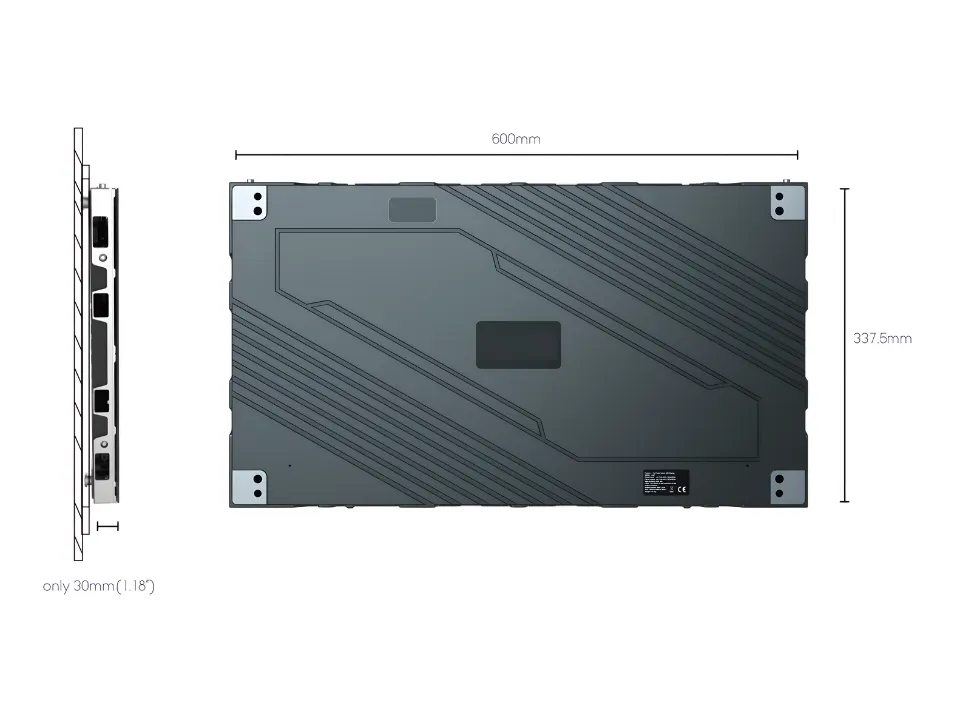

| Cabinet Size | 600 × 337.5 × 30 mm |
| Cabinet Weight | Approx. 4.2 kg |
| Aspect Ratio | 16:9 |
| Viewing Angle | Up to 165° |
| Refresh Rate | Up to 7680 Hz |
| Brightness | Up to 600 cd/m² |
| Installation | Wall-mounted / Hanging |
| Maintenance | Front access |
*Specifications may vary depending on configuration.
GHC Series – FAQs
What is a fine pitch LED display?
What viewing distance is suitable for the GHC Series?
Is the GHC Series suitable for control rooms?
Can the GHC Series be used in boardrooms and meeting spaces?
What refresh rate does the GHC Series support?
Does the GHC Series support front maintenance?
Can GHC LED cabinets be configured into large video walls?
