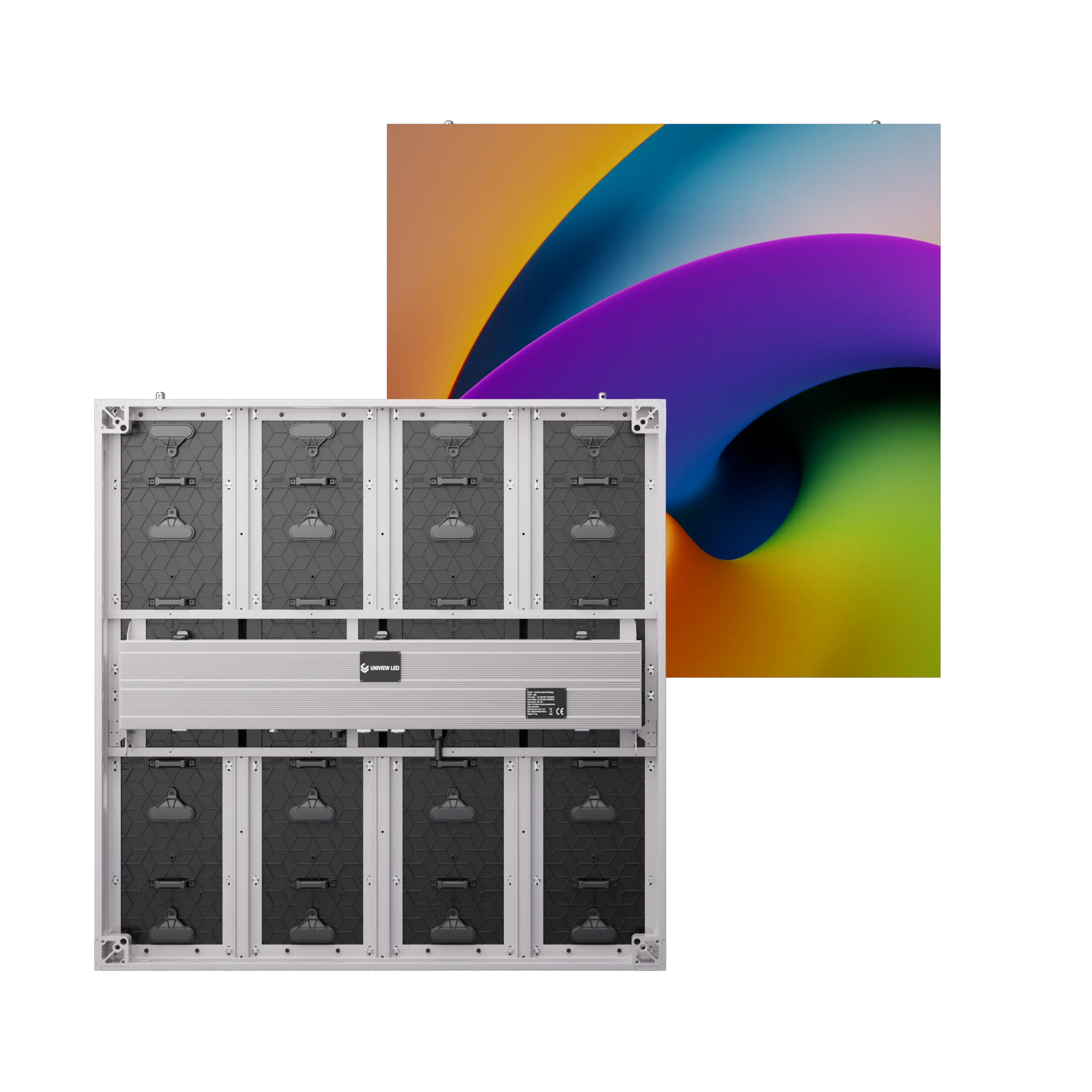

AQ Series LED Video Wall Panels

Outdoor LED Video Wall Panels for Fixed Installations

The AQ Series LED video wall panels are designed for outdoor fixed installations where high brightness, weather protection and long-term reliability are required.

Panels support both front and rear access, allowing installation and servicing in a wider range of environments. Multiple cabinet sizes and configurations allow screens to be built to suit specific layouts without affecting alignment.

The system is used in applications where panels need to operate continuously in outdoor conditions while maintaining consistent visual output.

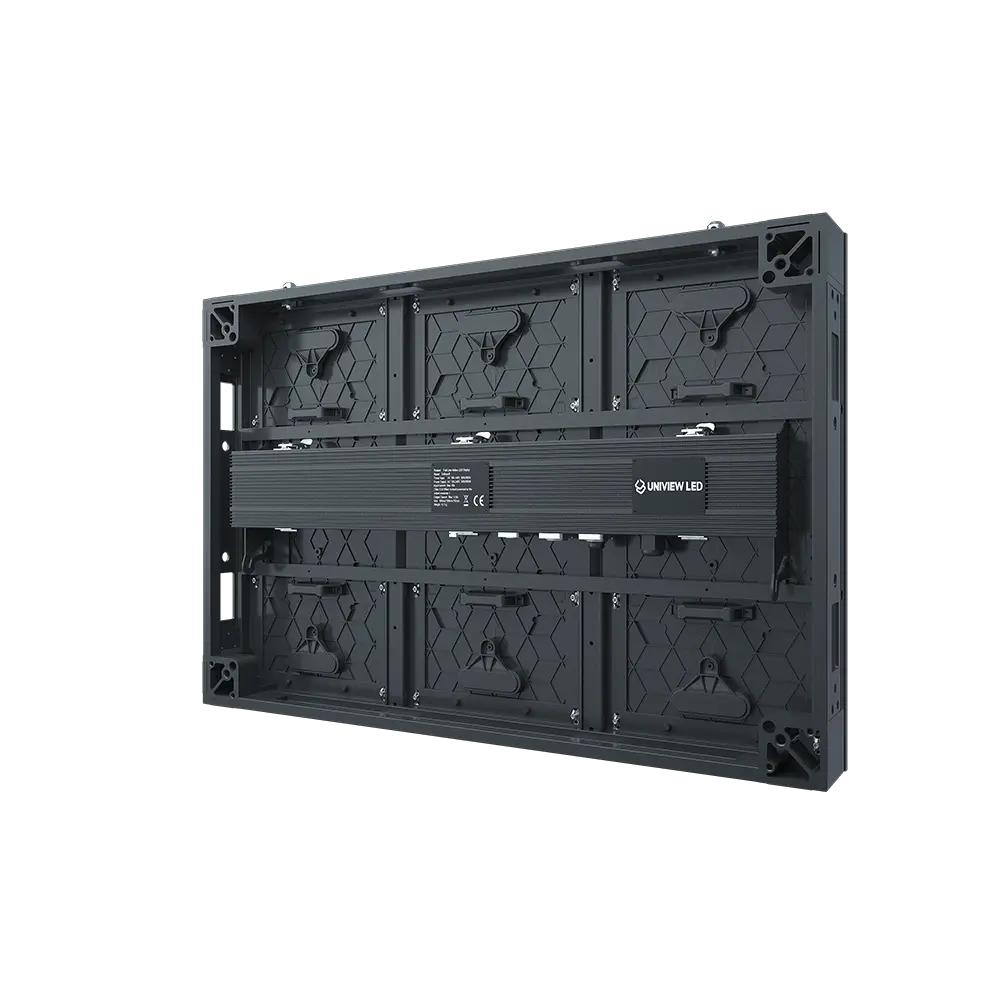

AQ Series

The AQ Series are built for outdoor use, with high brightness levels to maintain visibility in direct sunlight.

The cabinet structure supports different installation types, including flat, corner and curved layouts. Panels are available in multiple pixel pitch options to suit different viewing distances.

Front and rear service access allows maintenance to be carried out based on the installation setup.

Features

Outdoor LED video wall panels with high brightness output
Front and rear service access
IP-rated protection for outdoor environments
Multiple cabinet sizes for flexible screen layouts
Flat, corner and curved panel configurations
Modular panel system for scalable installations
Energy-efficient operation for long-term use
Designed for fixed installation environments

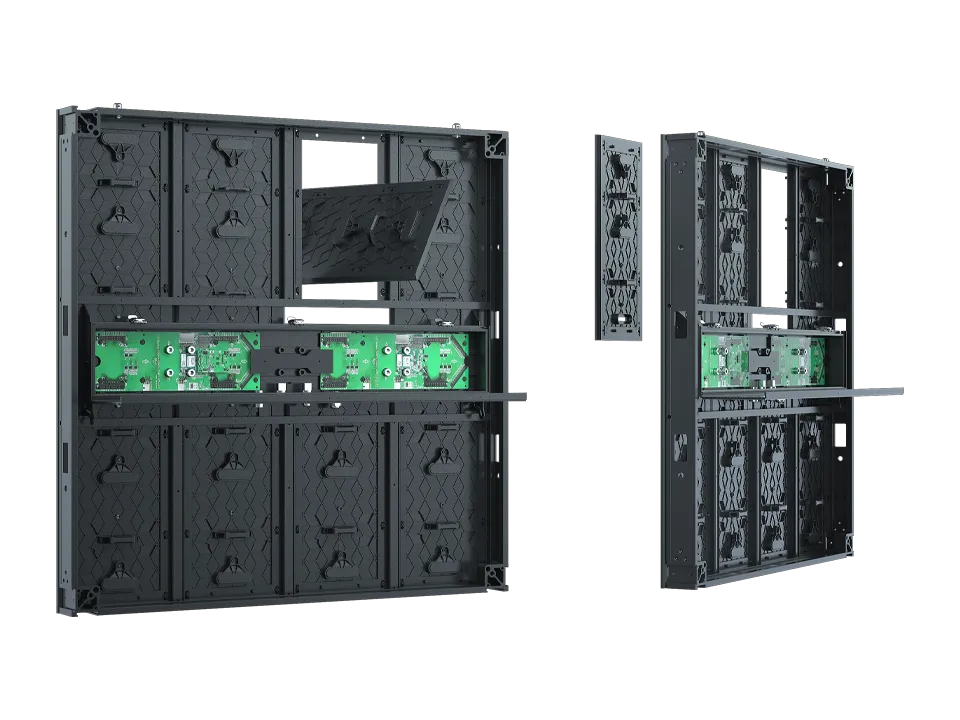

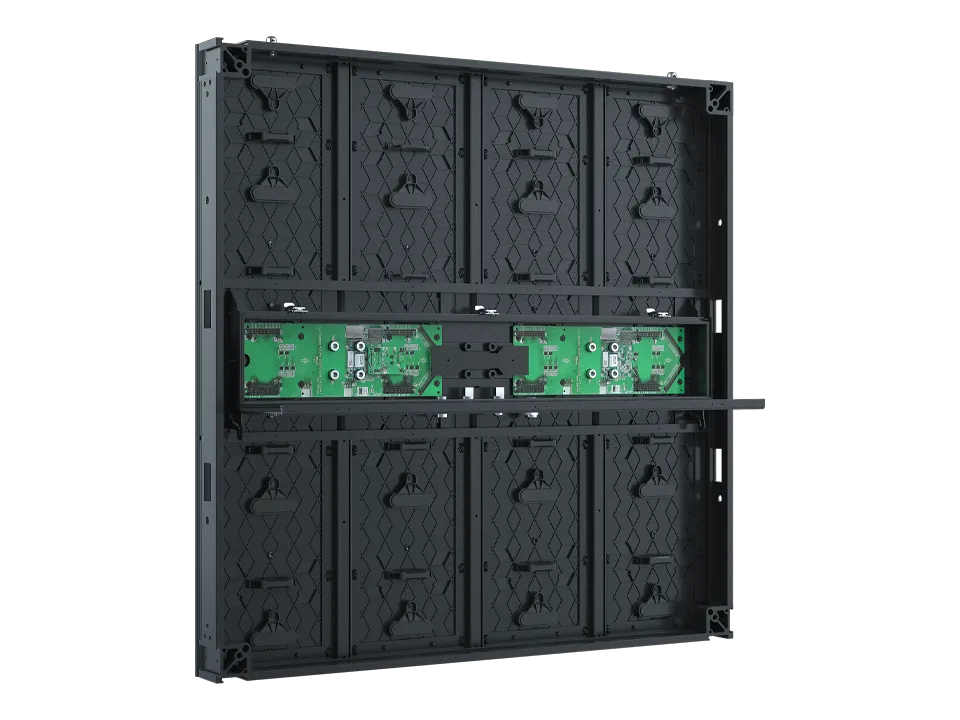

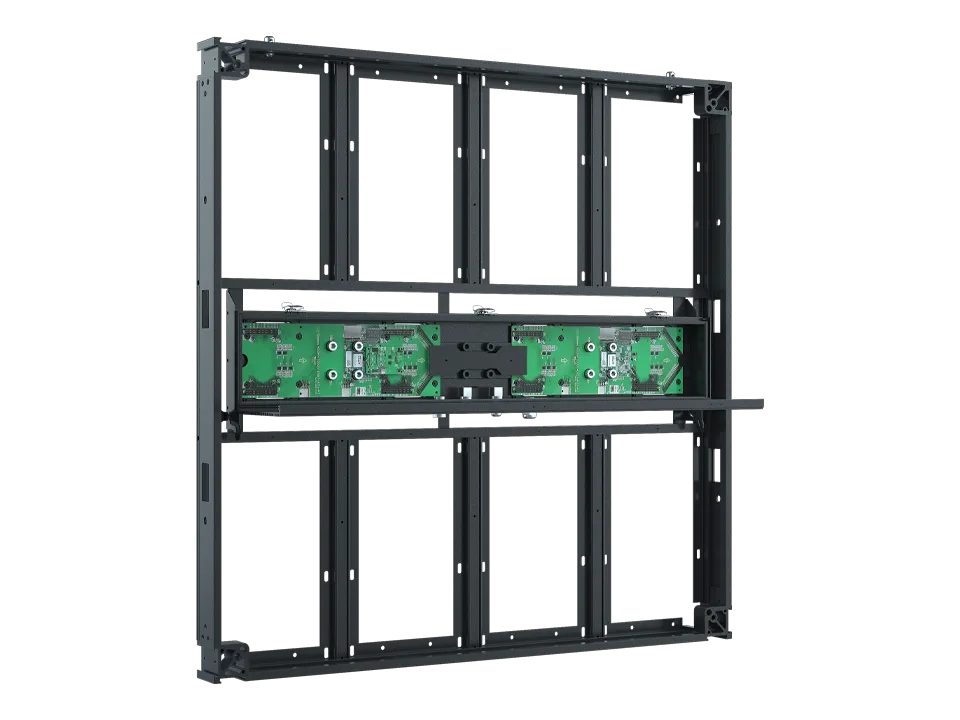

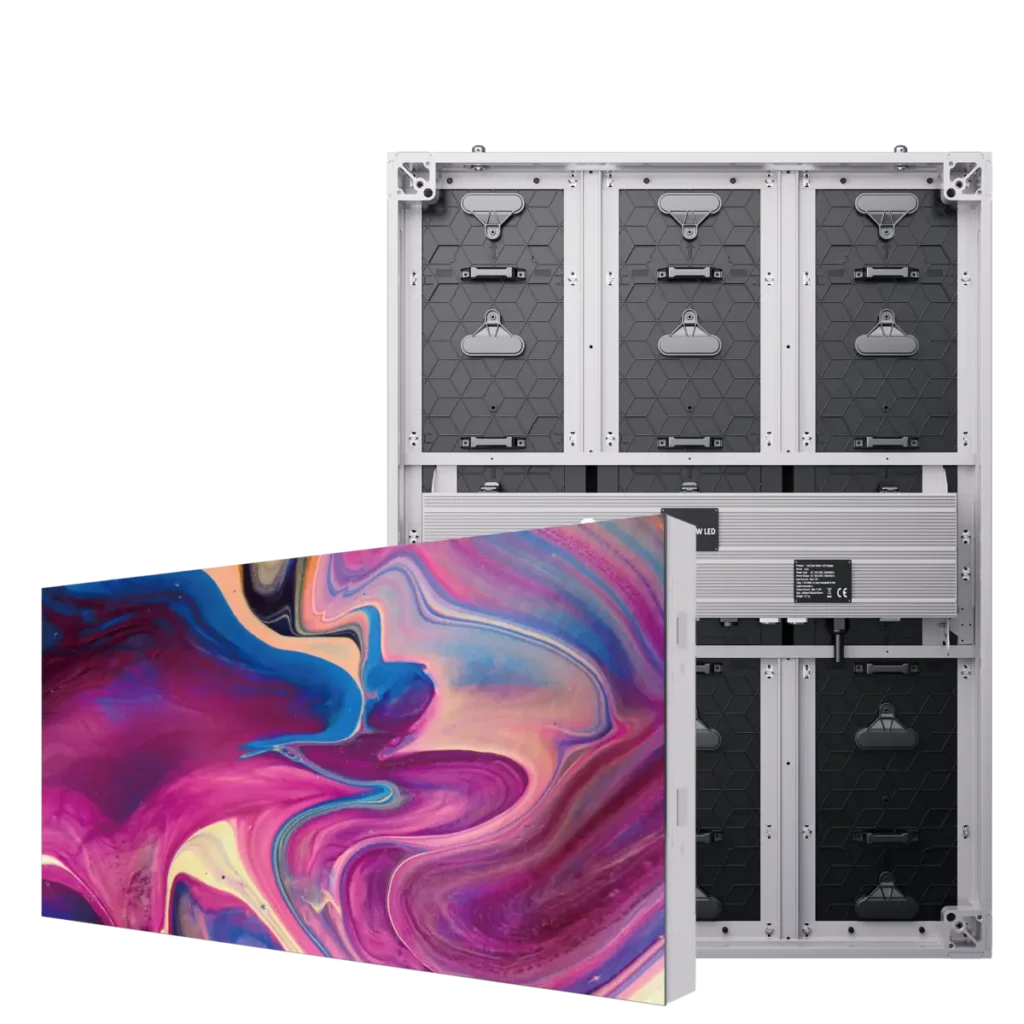

Front & Rear Service Access

Panels can be accessed from both the front and rear.

This allows maintenance to be carried out depending on how the system is installed, particularly in wall-mounted or restricted-access environments.

Outdoor Protection

Panels are built with IP-rated protection to operate in outdoor conditions.

The cabinet design protects internal components from rain, dust and temperature changes.

High Brightness Output

Panels are designed to remain visible in direct sunlight.

Brightness levels are suited to outdoor environments where ambient light levels are high.

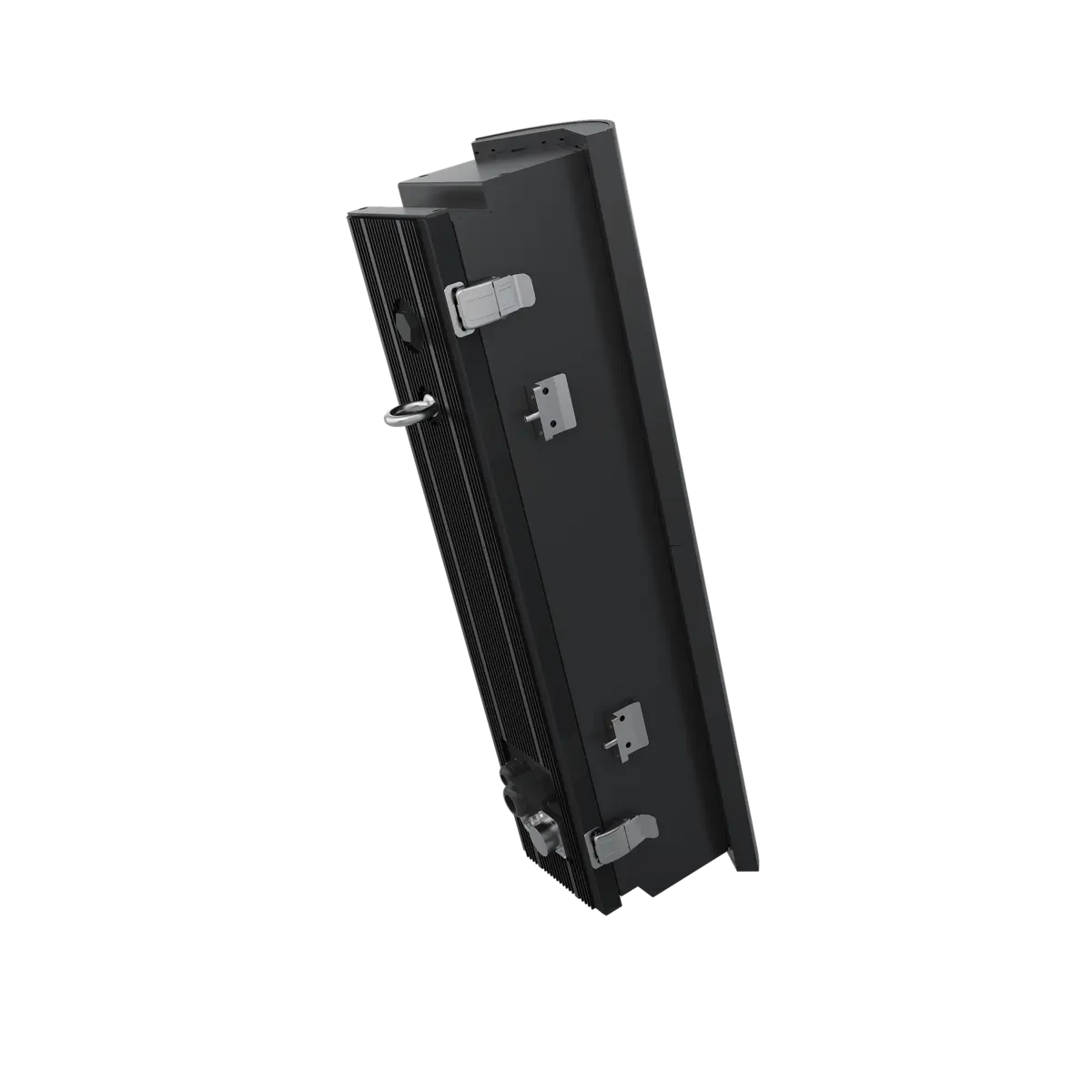

Slim Cabinet Design

Cabinets are designed with reduced depth to allow installation close to walls or structures.

This reduces the need for additional support frameworks.

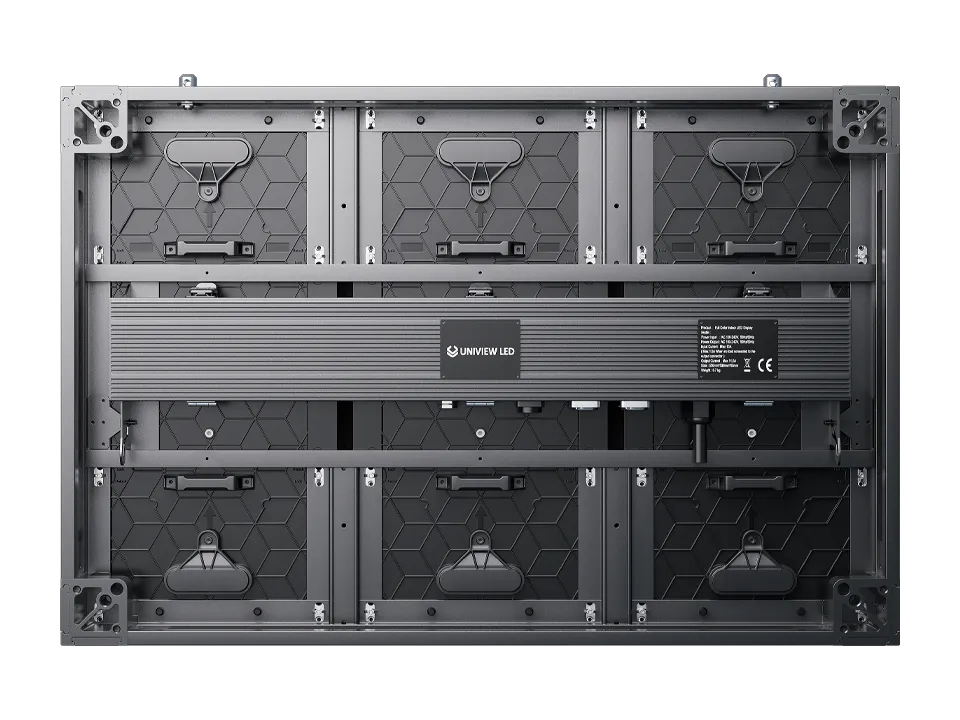

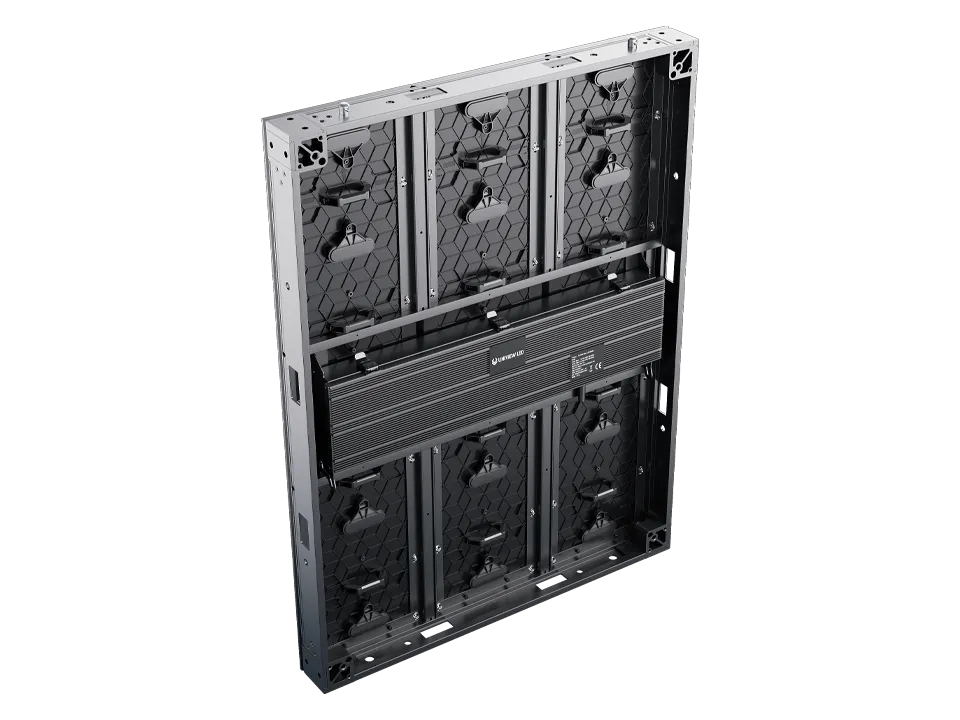

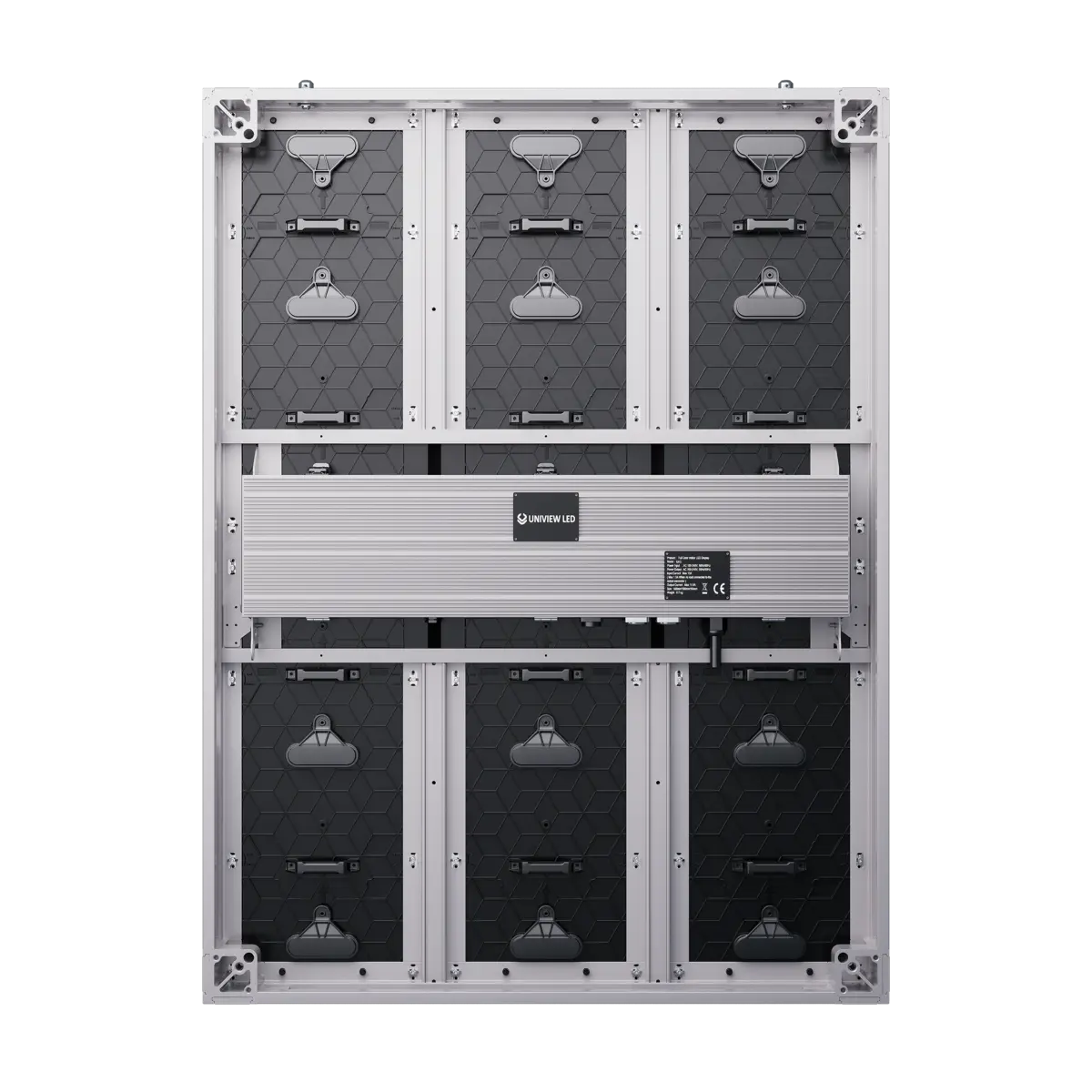

Flexible Cabinet Sizes

Panels are available in multiple cabinet sizes.

This allows screens to be configured to match specific dimensions without relying on fixed formats.

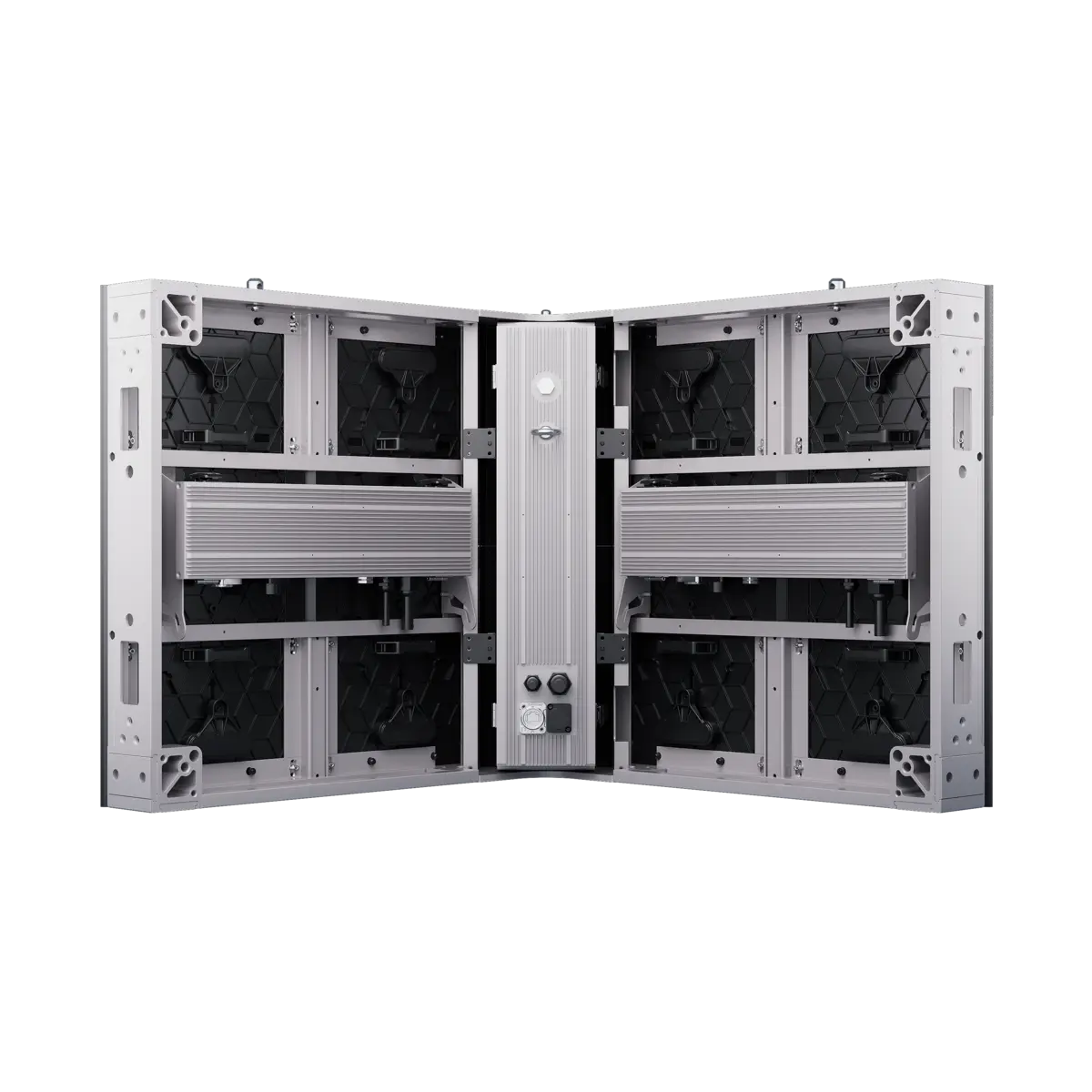

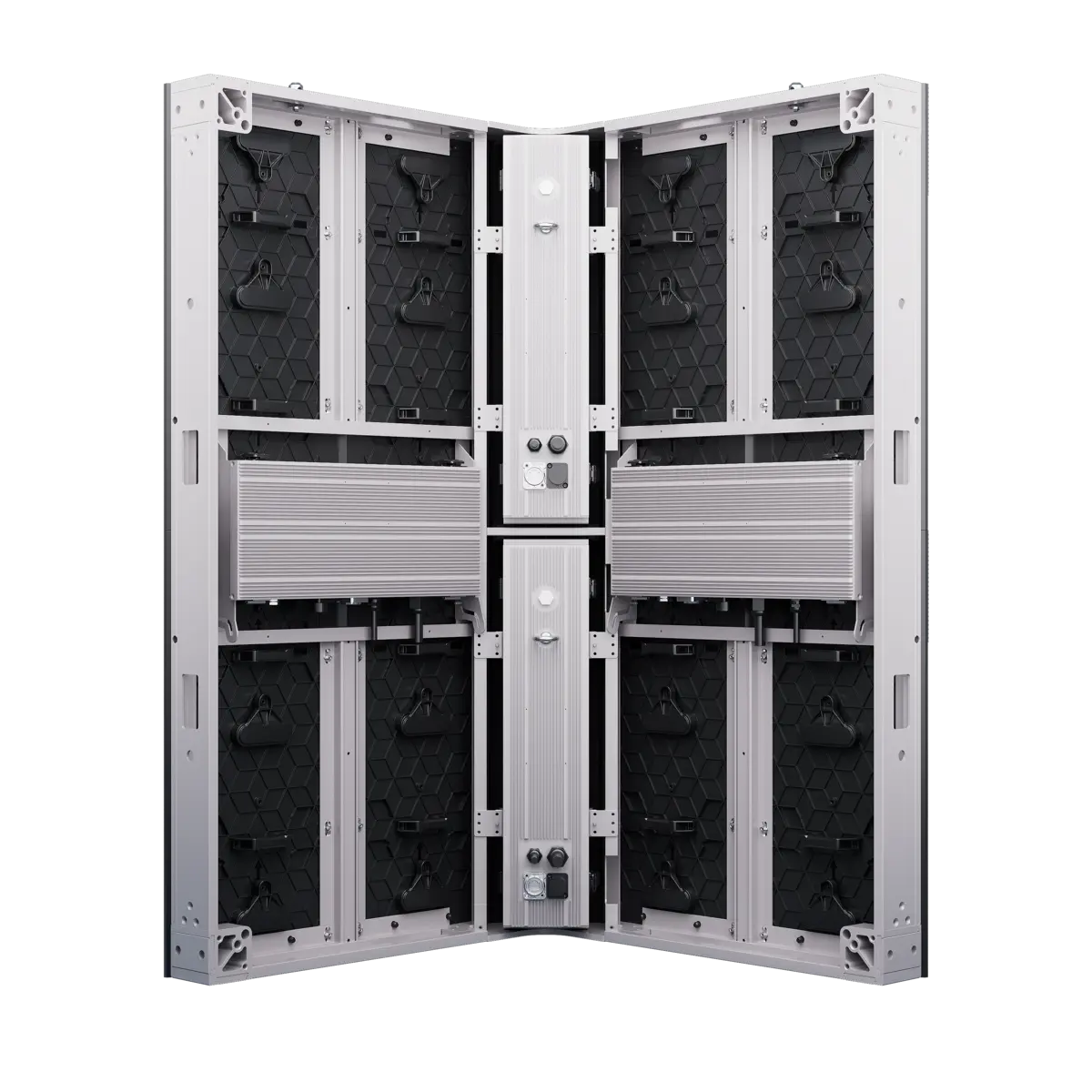

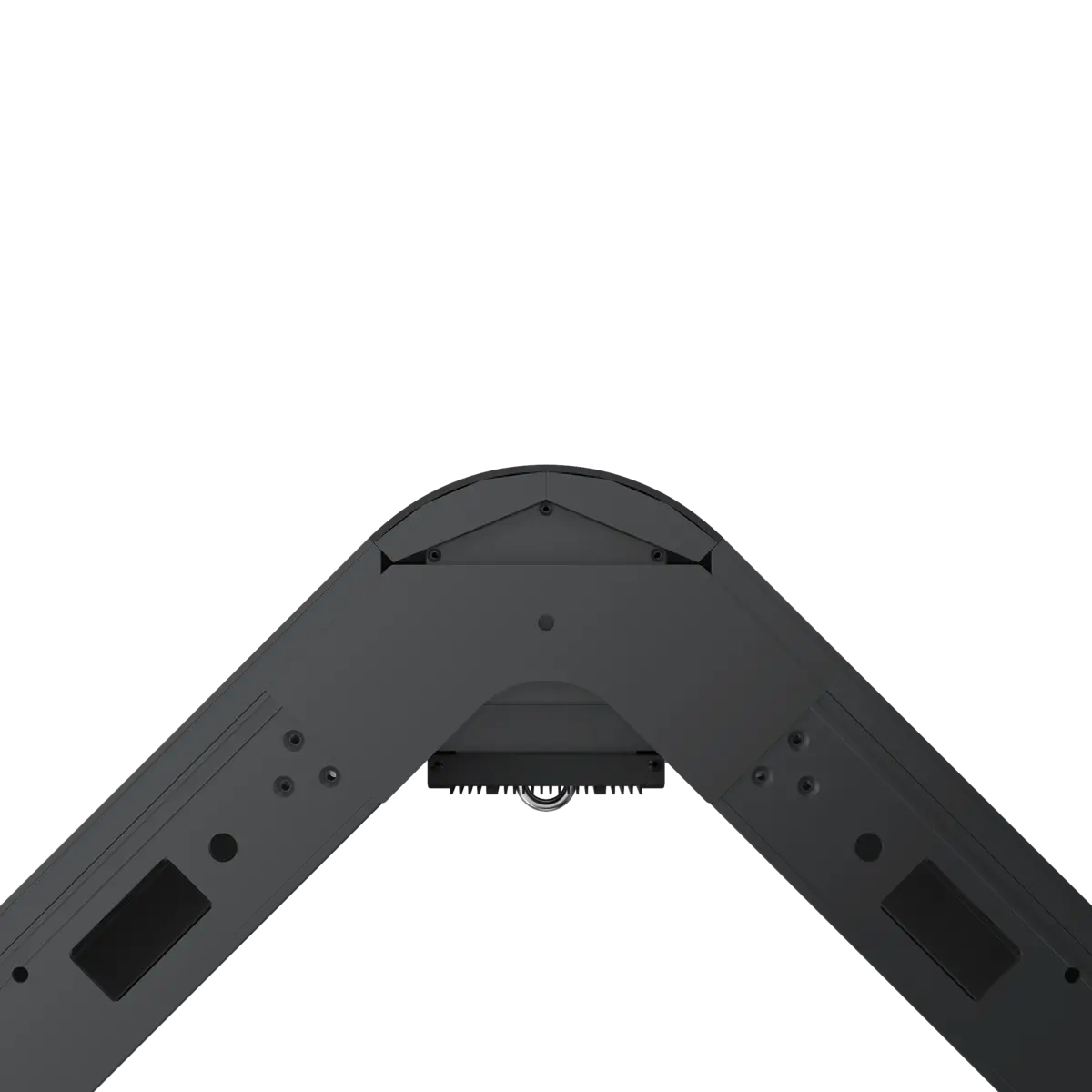

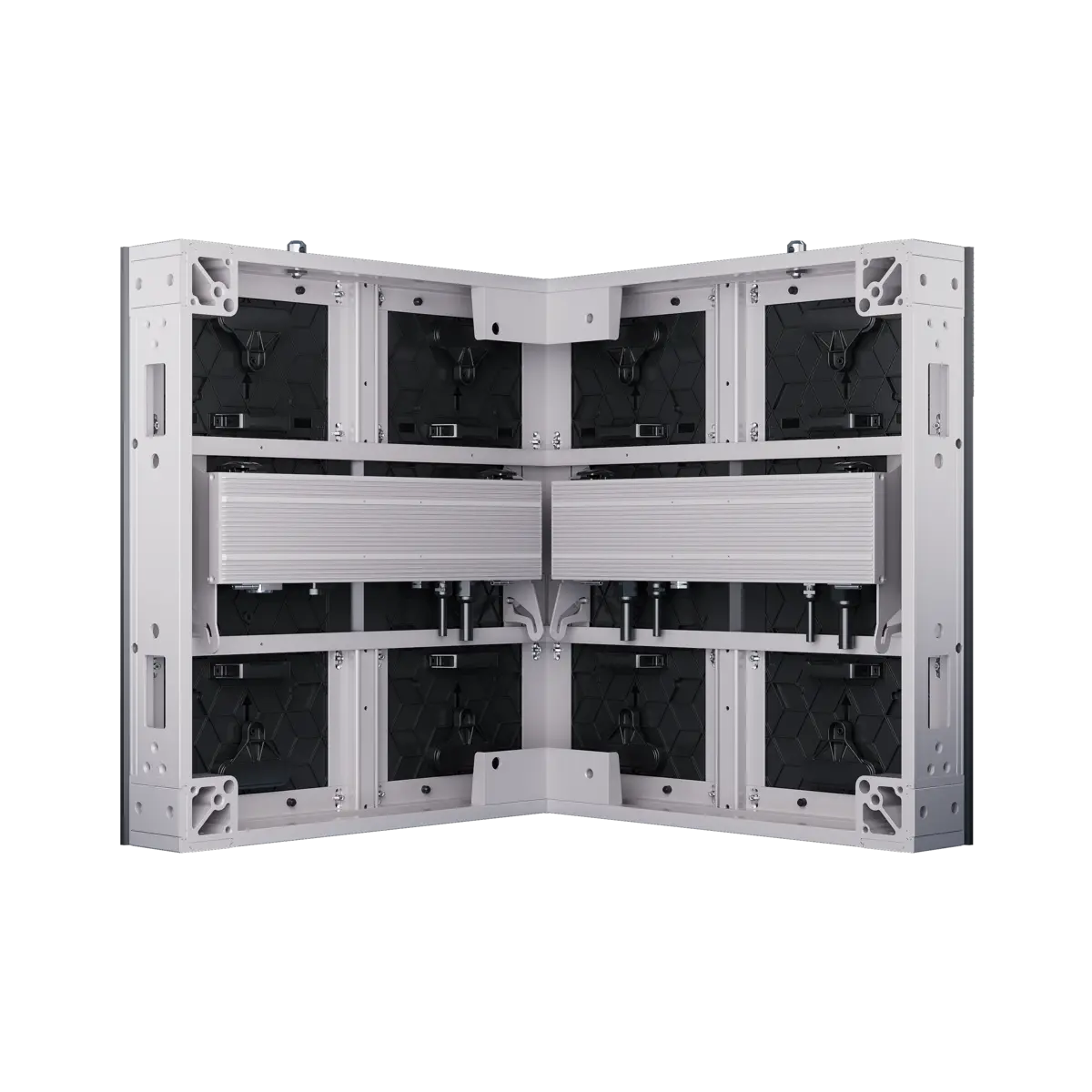

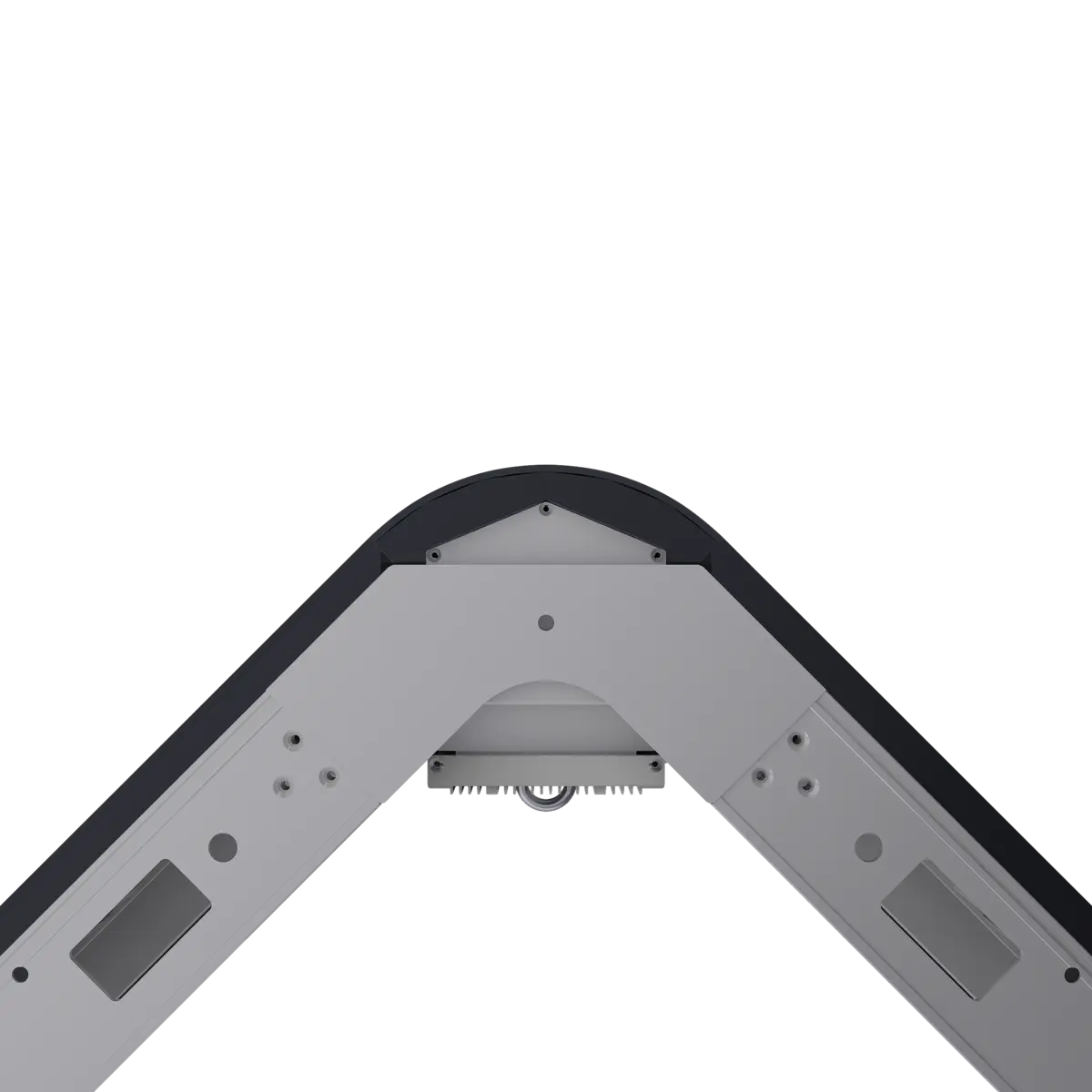

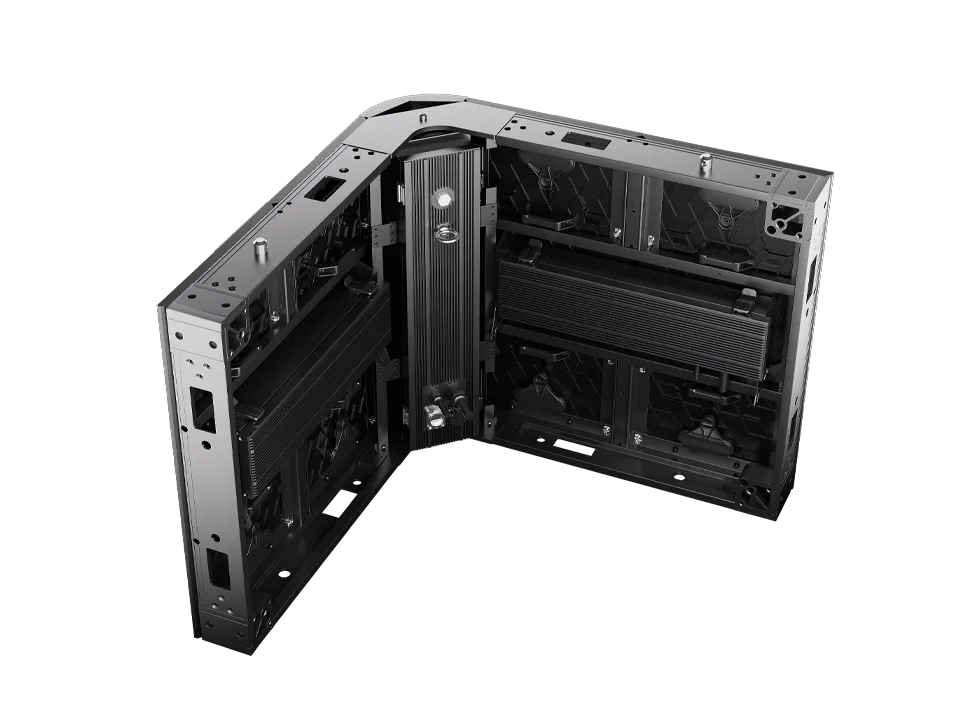

Flat, Corner & Curved Configurations

Panels support flat, right-angle and curved layouts.

This allows displays to be built around structures or integrated into architectural features.

Energy Efficiency

Panels are designed to balance brightness output with power consumption.

This helps reduce running costs in long-term installations.

Thermal Management

Cabinet design supports heat dissipation across the panel surface.

This helps maintain stable operation during continuous use.

Installation Methods

Panels support different installation types:

Wall-mounted installations
Structural frame installations
Corner and curved layouts

Typical Applications

Outdoor advertising displays
Sports and stadium installations
Retail and commercial exteriors
Public display systems
Architectural LED installations

Technical Specifications

Model	AQ3.9	AQ4.8	AQ6.9	AQ8.3	AQ10.4
Pixel Pitch (mm)	3.906	4.807	6.944	8.333	10.417
LED Configuration	SMD1921 (White)		SMD2727 (White)
Module Size (W × H) (mm)	250 × 500
Module Resolution	64 × 128	52 × 104	36 × 72	30 × 60	24 × 48
Adjustable Brightness (cd/m²)	5000–5500
Refresh Rate (Hz)	7680
Viewing Angle (H / V)	140° / 120°
Greyscale (Bit)	16
Cabinet Size (W × H × D) (mm)	1000 × 1000 × 83.8 / 750 × 1000 × 83.8 1000 × 500 × 83.8 / 750 × 500 × 83.8	1000 × 1000 × 83.6 / 750 × 1000 × 83.6 1000 × 500 × 83.6 / 750 × 500 × 83.6	1000 × 1000 × 86 / 750 × 1000 × 86 1000 × 500 × 86 / 750 × 500 × 86	1000 × 1000 × 85.2 / 750 × 1000 × 85.2 1000 × 500 × 85.2 / 750 × 500 × 85.2	1000 × 1000 × 86.7 / 750 × 1000 × 86.7 1000 × 500 × 86.7 / 750 × 500 × 86.7
Cabinet Weight (kg / panel)	25 / 14.5 / 19.5 / 11.5
Power Consumption (Max / Avg) (W/m²)	630 / 210	600 / 210

* Technical specifications are subject to change without prior notice. Please contact our sales team for the latest information.

AQ Series LED Displays – FAQs

What is the AQ Series used for?

Outdoor LED video wall installations that require high brightness, weather protection and long-term fixed operation.

Can the panels be used outdoors?

Yes. The AQ Series is designed for outdoor use, with cabinet protection and brightness levels suited to exposed environments.

What cabinet sizes are available?

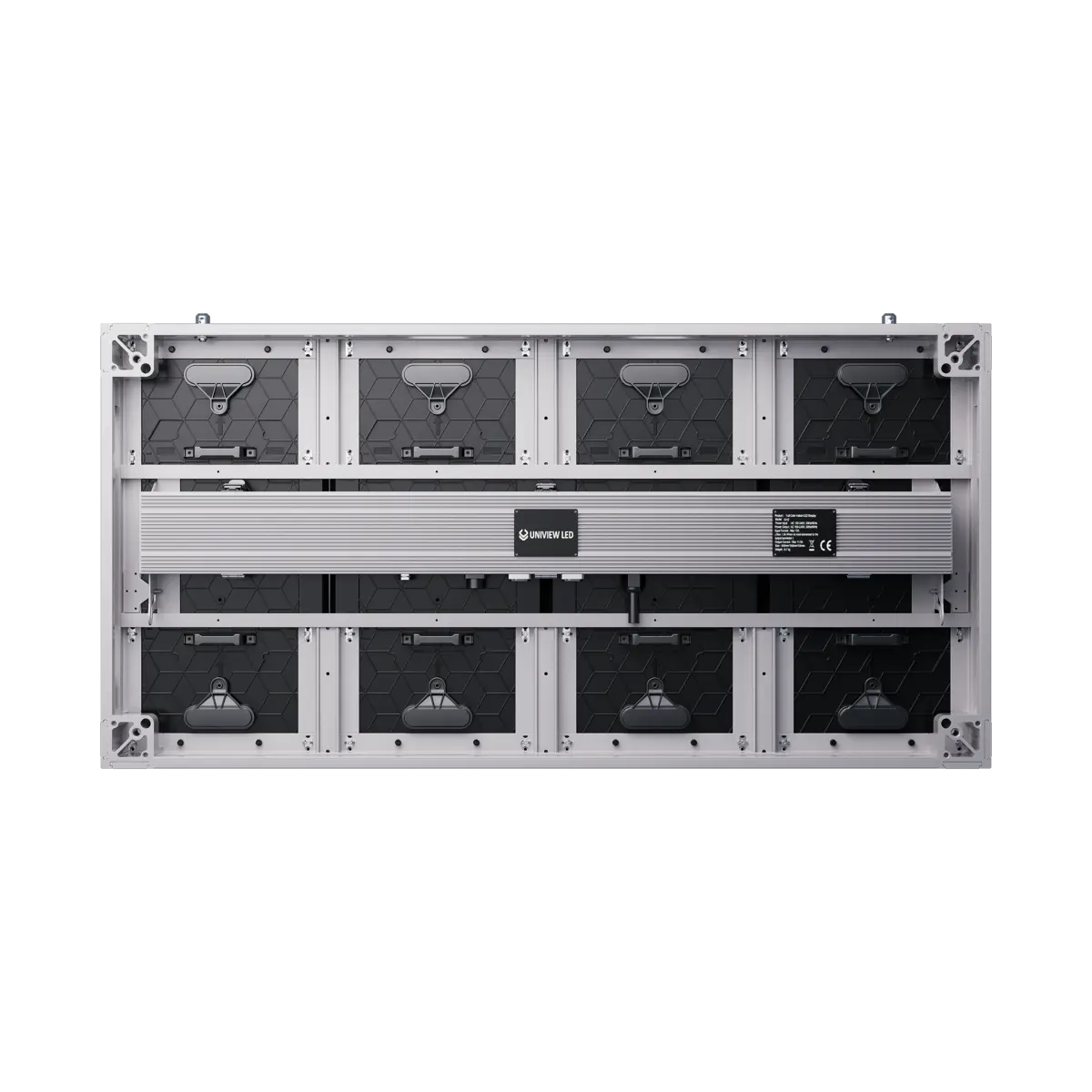

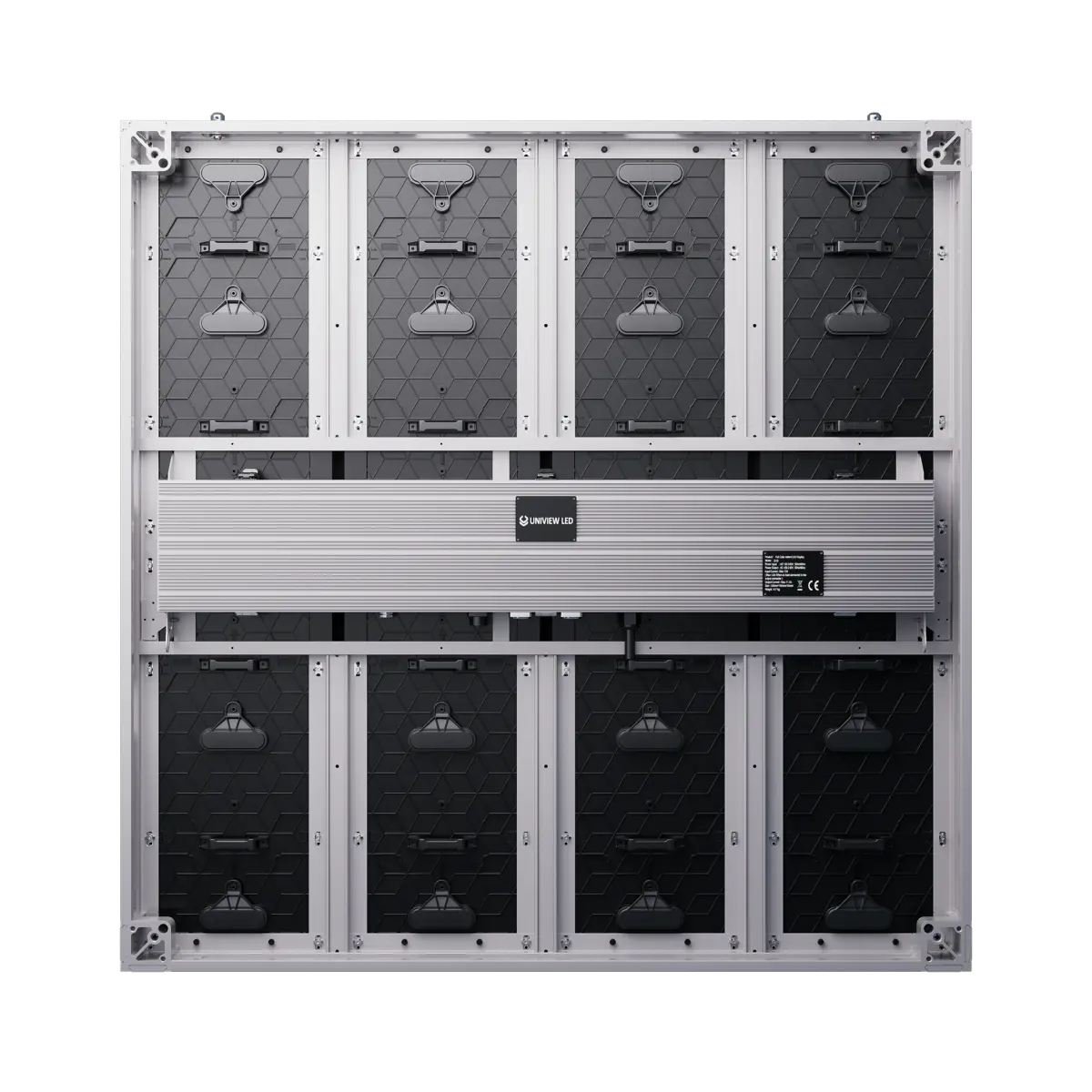

The AQ Series is available in four standard cabinet sizes: 1000 × 1000 mm, 1000 × 500 mm, 750 × 1000 mm and 750 × 500 mm.

Do the panels support front and rear access?

Yes. The AQ Series supports both front and rear service access, allowing maintenance to be carried out based on the installation setup.

Can the system be configured in different sizes?

Yes. Multiple cabinet sizes allow the screen to be configured to suit different dimensions and layouts.

How easy is the AQ Series to maintain?

The modular panel design allows individual components to be accessed and serviced without dismantling the full display.

Can AQ Series panels be wall-mounted?

Yes. The slim cabinet design allows panels to be installed close to walls or supporting structures.

Is the AQ Series suitable for high-brightness environments?

Yes. The panels are designed for environments with strong ambient light, including direct outdoor daylight.

Do the panels support curved or corner layouts?

Yes. The AQ Series supports flat, right-angle and curved configurations depending on the installation design.
