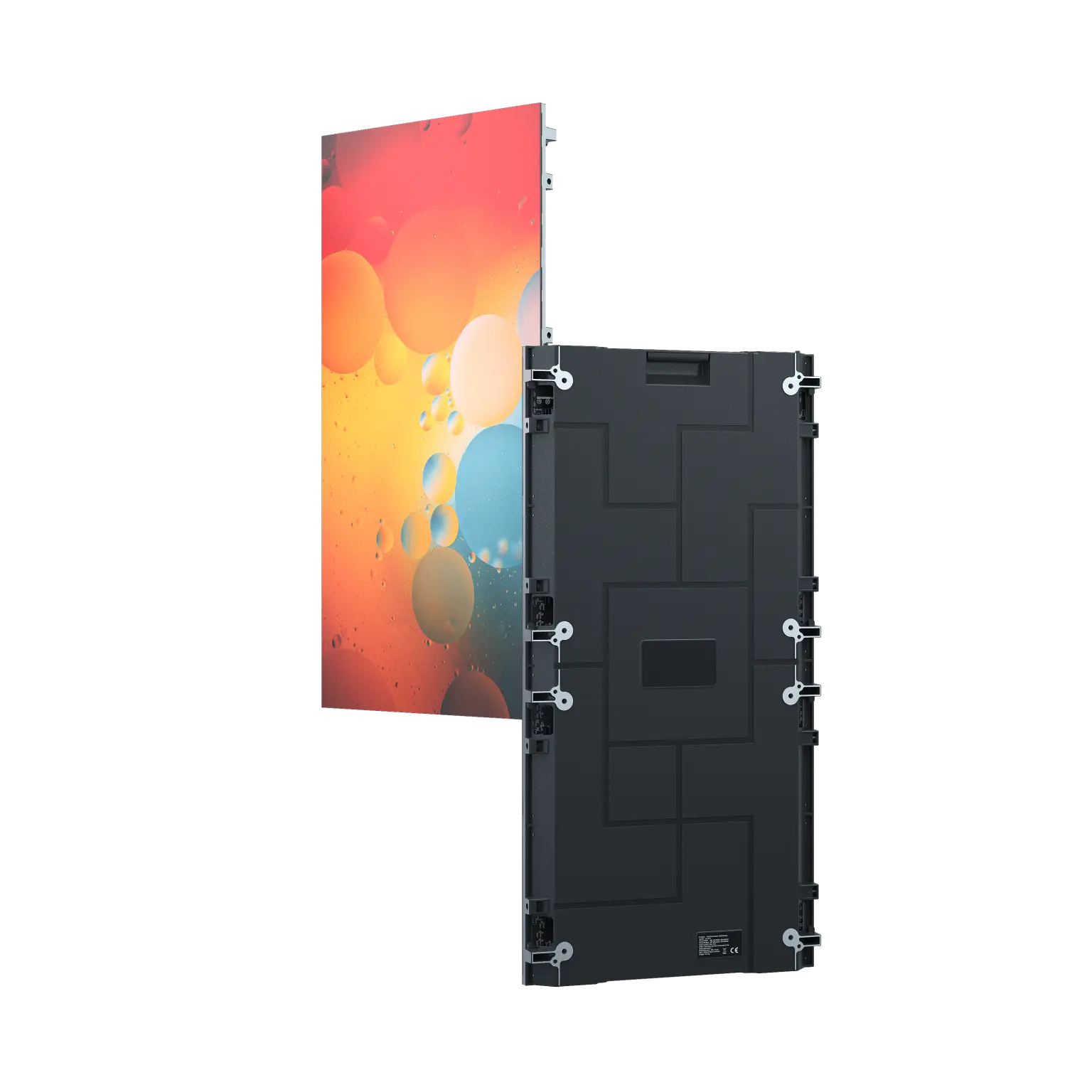

GX Pro Series LED Video Wall Panels
Modular LED Displays Built for Commercial & Public Spaces
The GX Pro Series LED video wall panels are designed for commercial and public-facing environments where reliability, flexibility and long-term performance are essential.
Built around a modular cabinet system with standardised LED panels, the GX Pro Series allows integrators to configure screens across a wide range of sizes without unnecessary complexity. Its robust structure and clean panel alignment make it well suited to retail displays, transport hubs, control rooms and information systems.
Designed for continuous operation, the system supports stable performance, efficient installation and scalable screen builds across multiple applications.
GX Pro Series
The GX Pro Series is engineered to provide a balance of performance, flexibility and operational efficiency using a standardised LED panel architecture.
Panels can be combined across multiple cabinet sizes while maintaining consistent alignment and visual uniformity. The system also supports power and receiving card redundancy, helping maintain uptime in critical commercial environments.
With support for multiple mounting methods and optional interactive functionality, the GX Pro Series provides a practical LED panel solution for permanent installations where reliability and adaptability are key.
Features:
- Modular LED video wall panels with flexible cabinet sizing
- Designed for commercial and public display environments
- High structural stability for long-term operation
- Seamless panel alignment with excellent flatness
- Power and receiving card redundancy options
- Energy-efficient operation for reduced running costs
- Multiple installation methods including wall-mounted and suspended
- Optional interactive touch functionality
Excellent Panel Flatness
The GX Pro Series is built using die-cast aluminium cabinets to ensure high structural rigidity and consistent panel flatness.
Each LED panel is supported across multiple internal points, helping maintain a uniform surface across the entire display. This ensures clean visual output without distortion, even across large-format installations.
High Stability Design
The system is designed for long-term reliability in commercial environments where continuous operation is required.
Direct connections between the power supply and HUB board improve electrical stability, while hard-wired signal transmission reduces the risk of failure. This approach ensures consistent performance across extended use.
Fast Installation
Installation is simplified through a combination of self-locking connectors and precision cabinet alignment.
Quick-connect wiring reduces setup time, while anti-misalignment connectors ensure panels are installed correctly. Pre-positioned fixings improve cabinet stability and help speed up installation across larger builds.
Energy Efficient Operation
The GX Pro Series uses a customised low-voltage power system to improve overall efficiency.
This design reduces power consumption compared to standard systems, helping lower operational costs in long-term installations without affecting performance.
Flexible Cabinet Sizes
The system supports multiple cabinet sizes, allowing integrators to build displays that suit specific project requirements.
Panels can be configured across different formats without affecting alignment or visual consistency, making the system suitable for both standard and non-standard screen layouts.
Power & Signal Redundancy
Redundant power supplies and receiving cards can be integrated to improve system reliability.
If a component fails, the system continues operating without interruption. This is particularly important for commercial environments where downtime is not acceptable.
Interactive Touch Capability
Optional touch functionality can be integrated into the LED panel system for interactive applications.
This enables accurate, responsive input while reducing false triggers, making it suitable for retail displays, wayfinding systems and user-facing environments.
Ready-to-Install Panel System
The GX Pro Series supports direct wall mounting using a lightweight aluminium structure.
Panels can be installed without additional finishing or framing, reducing installation time and simplifying deployment in commercial environments.
Multiple Installation Methods
The system supports a range of installation approaches depending on the environment:
Wall-mounted installations for permanent displays
Suspended setups using rigging systems
Freestanding or framed configurations
This flexibility allows the panels to be deployed across a wide range of commercial and public applications.
Technical Specifications
| Model | GX1.5 | GX1.9 | GX2.5 | GX2.6 | GX2.9 | GX3.1 | GX3.9 | GX4.8 | GX5.9 | GX HB2.9 | GX HB3.9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.562 | 1.953 | 2.500 | 2.604 | 2.976 | 3.125 | 3.906 | 4.807 | 5.952 | 2.976 | 3.906 |
| LED Configuration | SMD1212 (Black) | SMD1515 | SMD1515 / SMD2020 (Black) | SMD2020 | SMD2020 | SMD2020 | SMD2020 (Black) | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Adjustable Brightness (cd/m²) | 600 | 600 | ≥800 | 600–800 | ≥3000 | ||||||
| Module Size (W × H) (mm) | 250 × 250 | ||||||||||
| Module Resolution | 160 × 160 | 128 × 128 | 100 × 100 | 96 × 96 | 84 × 84 | 80 × 80 | 64 × 64 | 52 × 52 | 42 × 42 | 84 × 84 | 64 × 64 |
| Refresh Rate (Hz) | ≥2880 | ≥3840 | |||||||||
| Viewing Angle (H / V) | 160° / 140° | 140° / 140° | |||||||||
| Greyscale (Bit) | 14 bit | ||||||||||
| Cabinet Size (W × H × D) (mm) | 500 × 1000 × 47 / 500 × 750 × 47 / 500 × 500 × 47 / 500 × 250 × 47 | ||||||||||
| Cabinet Weight (kg / panel) | 11.2 / 8.5 / 6.5 / 3.5 / 4.5 | ||||||||||
| Power Consumption (Max / Avg) (W/m²) | 450 / 150 | 600 / 200 | |||||||||
* Technical specifications are subject to change without prior notice. Please contact our sales team for the latest information.
GX Pro Series Led Displays – FAQs
What is the GX Pro Series designed for?
The GX Pro Series is designed for commercial and public-facing environments, including retail stores, shopping centres, transport hubs, corporate spaces and information displays. It prioritises reliability, visual consistency and long-term operational stability.
How does the GX Pro Series differ from the standard GX Series?
The GX Pro Series builds on the GX platform with enhanced flatness, higher structural stability, improved energy efficiency and redundancy support for both power supplies and receiving cards. It is optimised for continuous, long-term use in demanding commercial settings.
What makes the GX Pro Series suitable for long-term operation?
The GX Pro Series features a high-stability cabinet design, die-cast aluminium construction, robust internal connections and redundancy options. These elements help ensure uninterrupted operation and reduce the risk of downtime in critical environments.
Can GX Pro cabinets be configured in different sizes?
Yes. The GX Pro Series supports nine different cabinet sizes, ranging from 250 × 500mm to 1000 × 250mm. Cabinets can be freely combined using standardised modules, allowing flexible screen sizes and layouts without complex customisation.
Is the GX Pro Series easy to install?
Yes. The GX Pro Series is designed for fast and efficient installation, featuring self-locking quick connectors, upgraded module interfaces and pre-positioned high-precision screws. These features reduce installation time and minimise the risk of assembly errors.
How energy efficient is the GX Pro Series?
The GX Pro Series uses a customised 4.5V power supply design, making it up to 10% more energy-efficient than the standard GX Series. This helps reduce running costs, particularly for displays operating for long hours.
Does the GX Pro Series support redundancy?
Yes. The GX Pro Series supports redundancy on both power supplies and receiving cards, helping ensure continuous operation if a component fails. This makes it ideal for critical displays where uptime is essential.
Are there any cabinet limitations to be aware of?
Yes. The 500 × 250mm cabinet has limited internal space and supports dual receiving cards only, rather than full power supply redundancy. Additionally, the 500 × 750mm cabinet is designed for use as the top row and cannot be hung.
Is interactive touch functionality available?
Yes. The GX Pro Series offers optional interactive touch display functionality, providing faster response times, improved accuracy and reduced false triggers compared to traditional infrared or radar-based touch systems.
What installation methods are supported?
The GX Pro Series supports a wide range of installation solutions, including:
- Direct wall mounting
- Hanging installations using rigging and safety ropes
- TV-style installations
This versatility allows the system to adapt to different commercial and architectural requirements.
