NIS PRO Series Flexible LED Displays

LED Displays for Curved Walls, Columns & Architectural Installations

The NIS PRO Series is built for projects where a standard flat screen won’t work. It uses flexible LED modules that can be shaped around structures, allowing screens to follow curves, wrap around columns or form non-standard layouts.

It is primarily used in indoor environments where the display forms part of the architectural design, allowing curved LED walls, column displays and bespoke digital features to be created where conventional flat LED panels are unsuitable.

NIS-Pro-c05
NIS-Pro-c07
NIS-Pro-c10
NIS-Pro-c12
NIS-Pro-c13
NIS-Pro-c15
NIS-Pro-c17

NIS PRO Series

The system is based on small, flexible LED modules that can bend to create curved or irregular surfaces. This makes it suitable for installations where the screen needs to fit around architecture or form part of a feature display.

It’s commonly used in:

  • Retail environments
  • Exhibitions and trade stands
  • Showrooms and reception areas

The focus is on flexibility, clean visual output and straightforward installation.

Features

  • Flexible LED modules for curved installations
  • Fine pixel pitch for close viewing
  • Lightweight construction
  • Smooth joins across curved surfaces
  • Simple wiring and connection system
  • Modular design for maintenance

Flexible Module Design

The modules can be shaped to follow both inner and outer curves.

This allows the screen to be used on:

  • Columns
  • Curved walls
  • Wave-style feature displays
  • Custom-built structures



Instead of forcing a flat panel into place, the screen can be built to match the space.

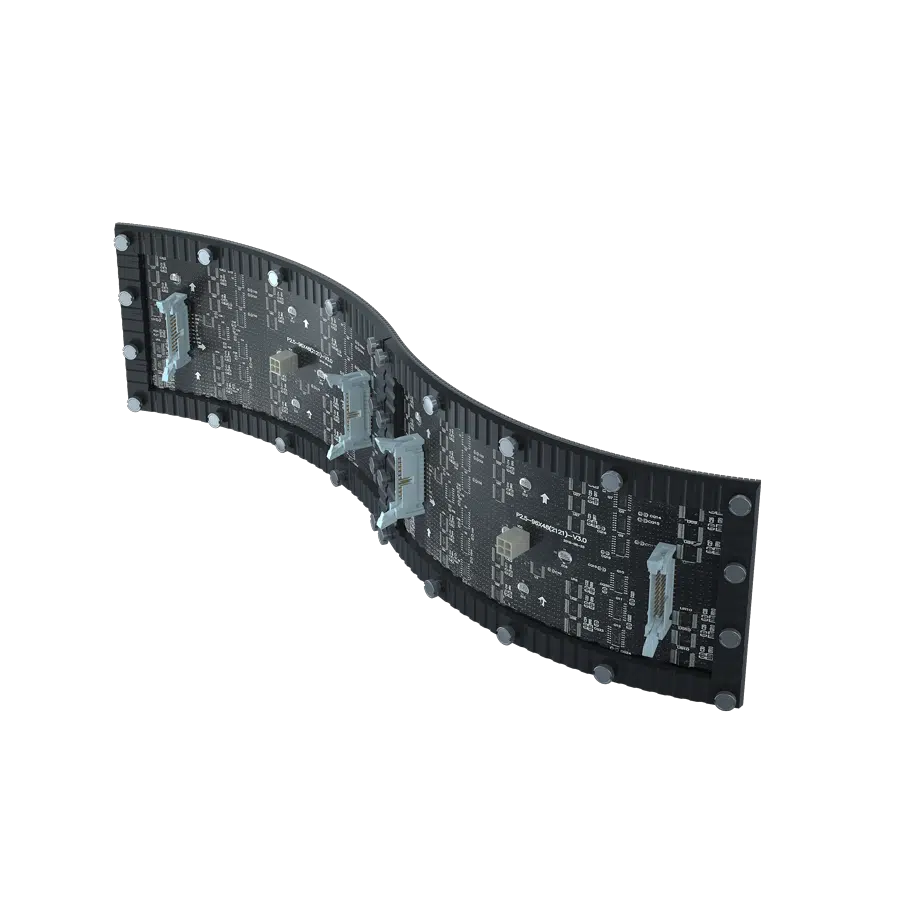

NIS Pro c15

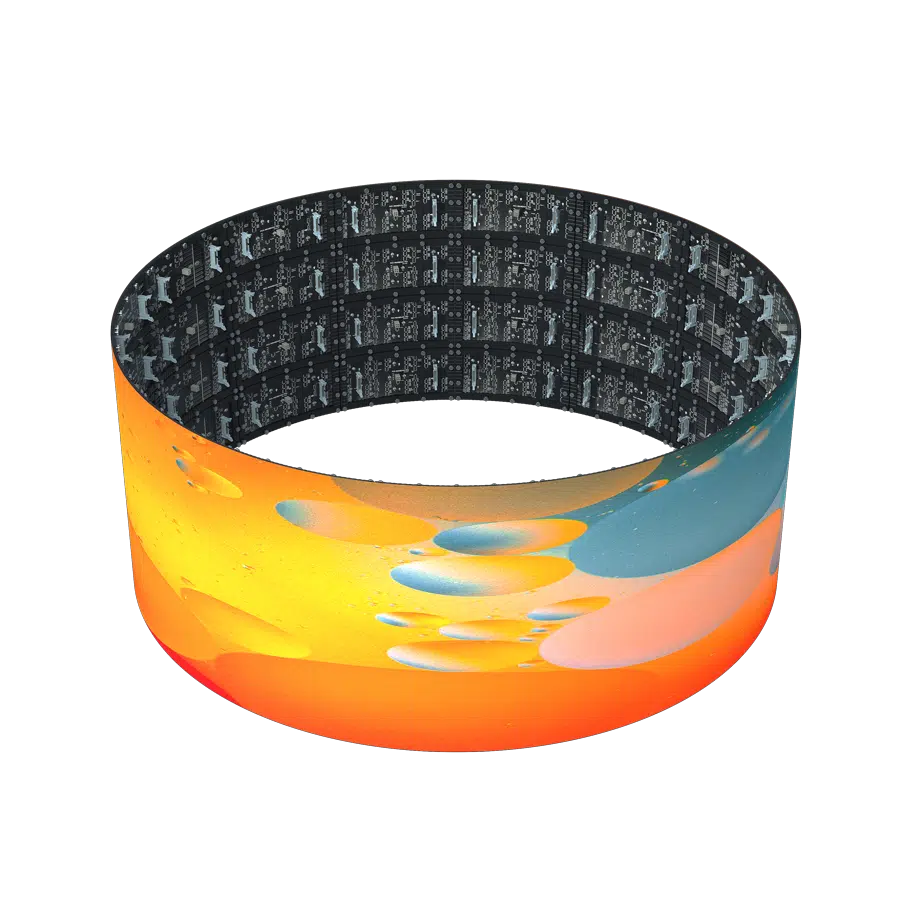

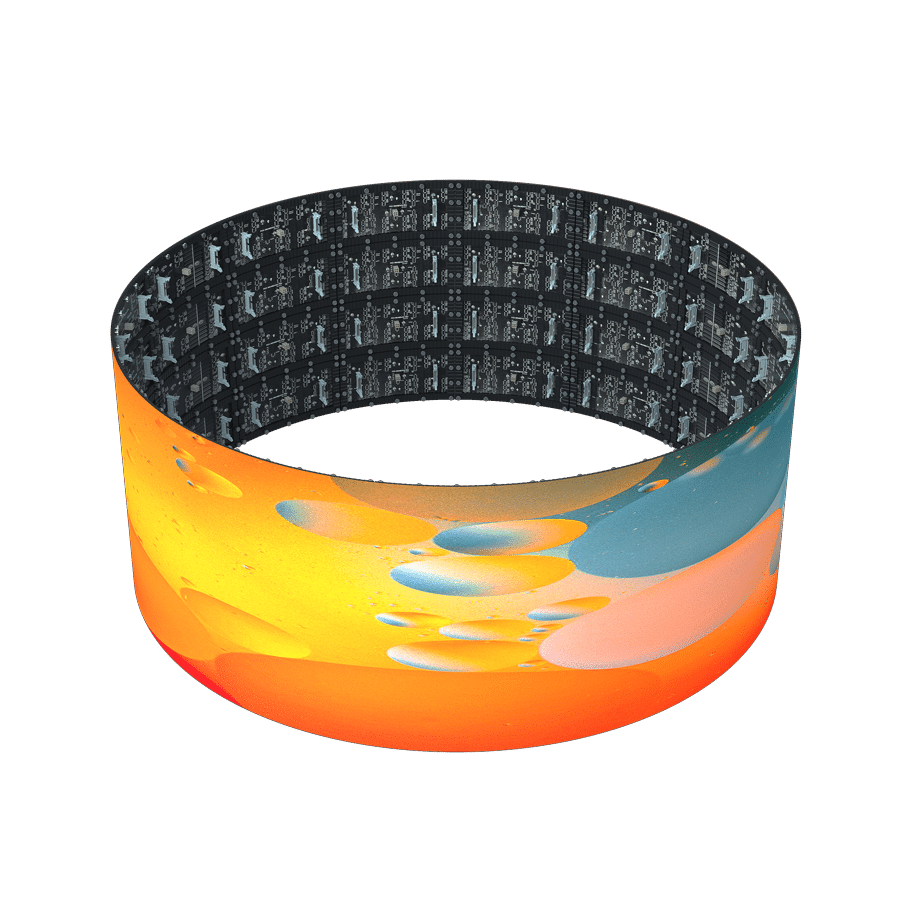

NIS Pro c17

Consistent Surface Across Curves

One of the main issues with curved LED is visible joins or creasing. The NIS PRO modules are designed to sit closely together, so the surface remains even across the curve.

In practice:

  • No visible gaps between modules
  • No distortion when forming arcs
  • The image remains continuous across the surface

Fine Pitch for Indoor Viewing

Pixel pitch options around 1.9mm and 2.6mm make the system suitable for closer viewing distances.

This is commonly used where:

  • People are standing or walking near the screen
  • Content includes text or detailed visuals
  • The display is part of an interior space



At these distances, the image remains clear without visible pixel structure.

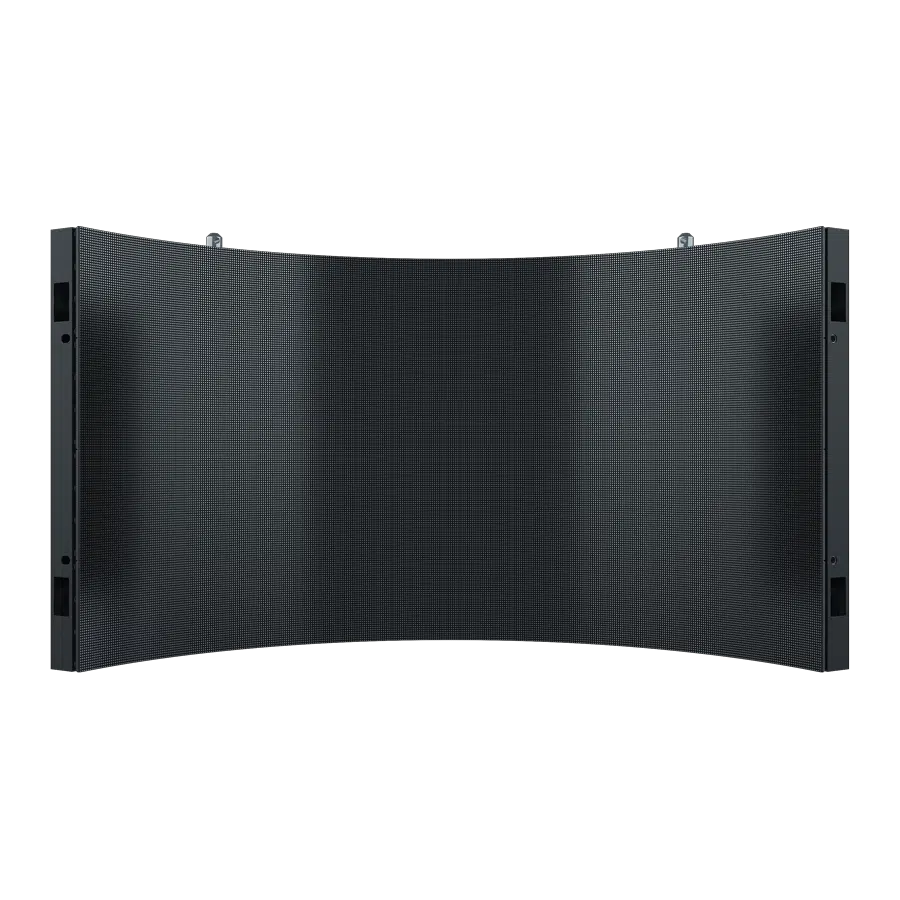

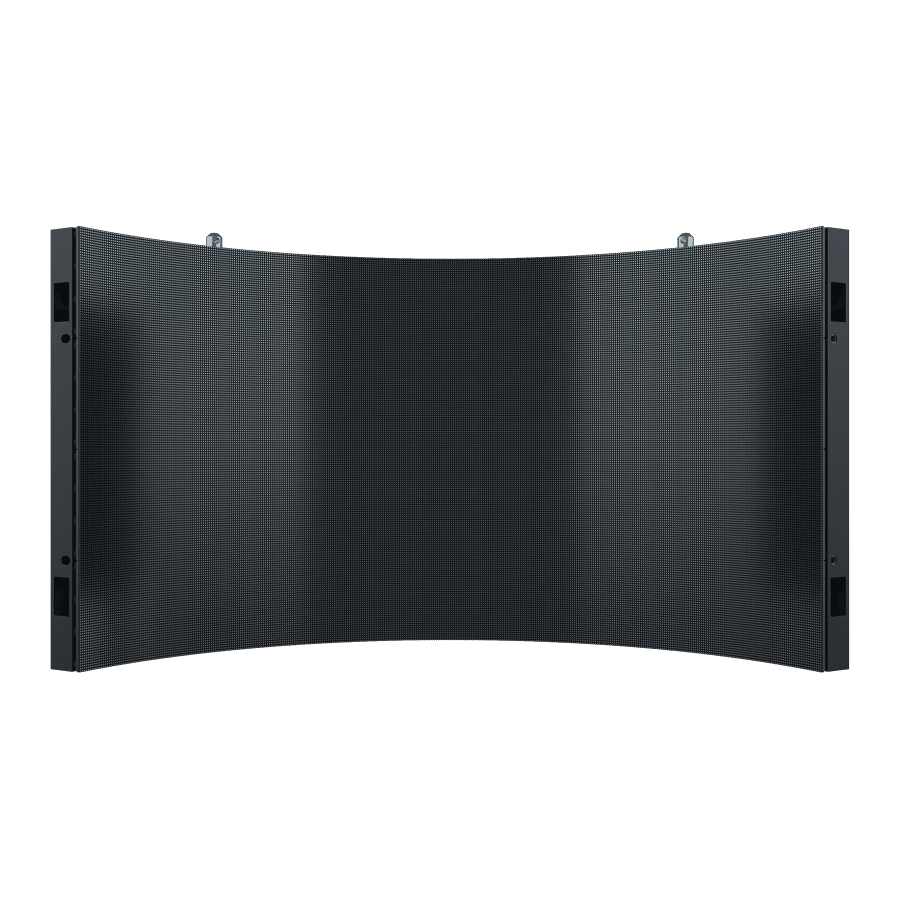

NIS Pro c12

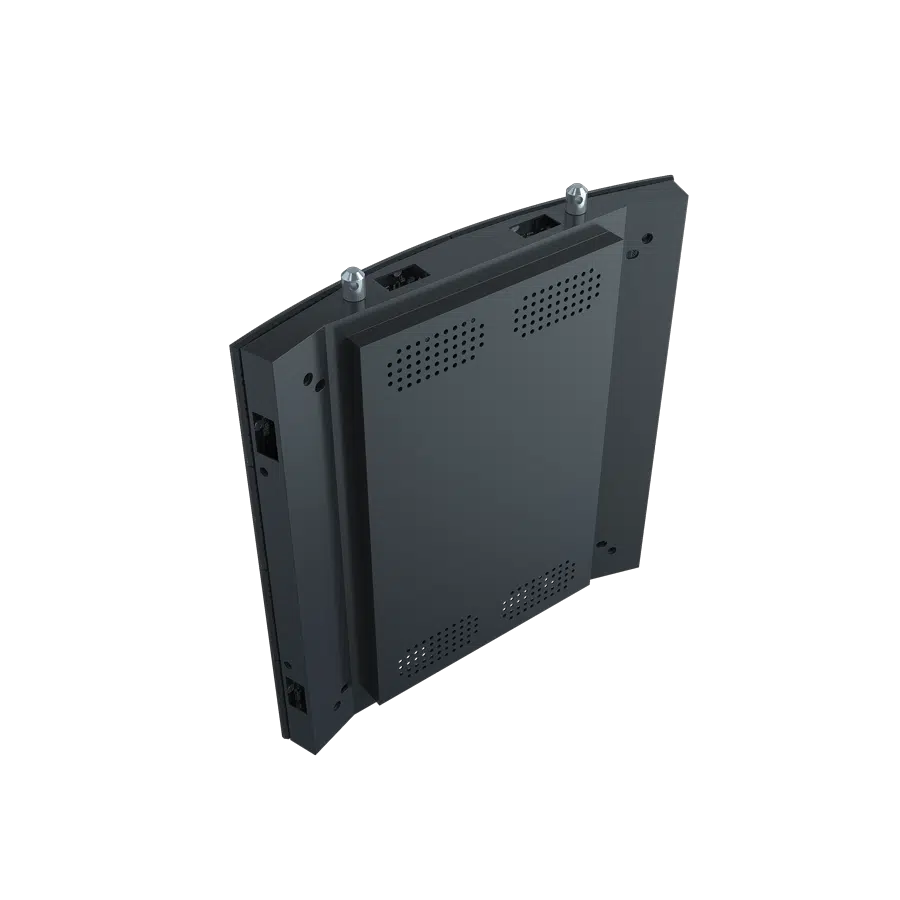

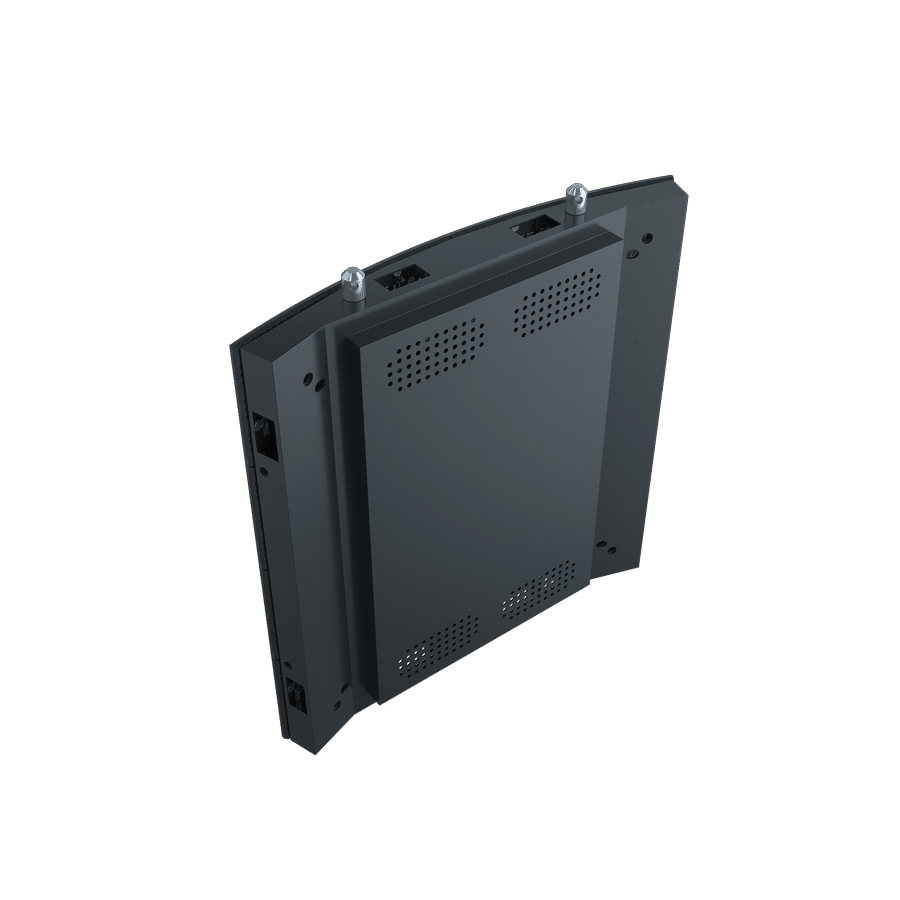

NIS Pro c10

Lightweight Module Construction

Each module is small and light, which makes handling and installation easier.

This helps when:

  • Mounting onto custom frames
  • Working on curved structures
  • Installing in confined spaces



It also reduces the load on supporting structures.

Fast Installation & Simple Integration

The modules use a simple connection system with cascading wiring, which keeps setup straightforward.

For installers, this means:

  • Less time spent on cabling
  • Faster assembly on site
  • Easier fault tracing if needed



This is particularly useful for exhibition builds and temporary installs.

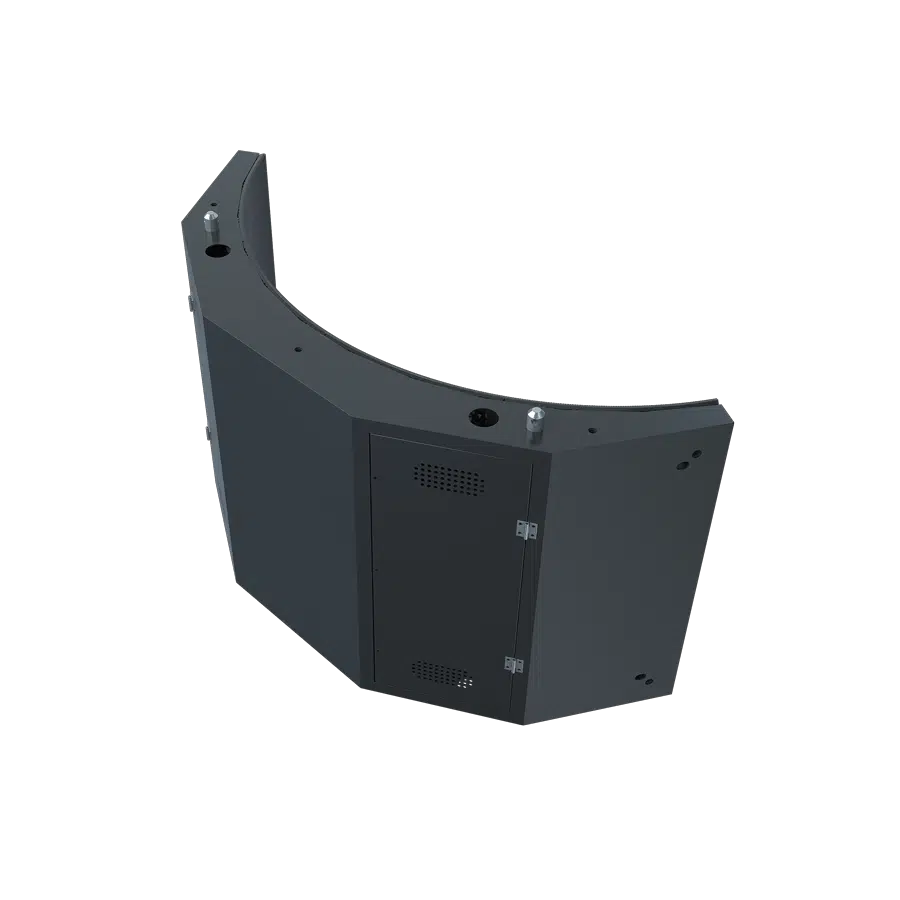

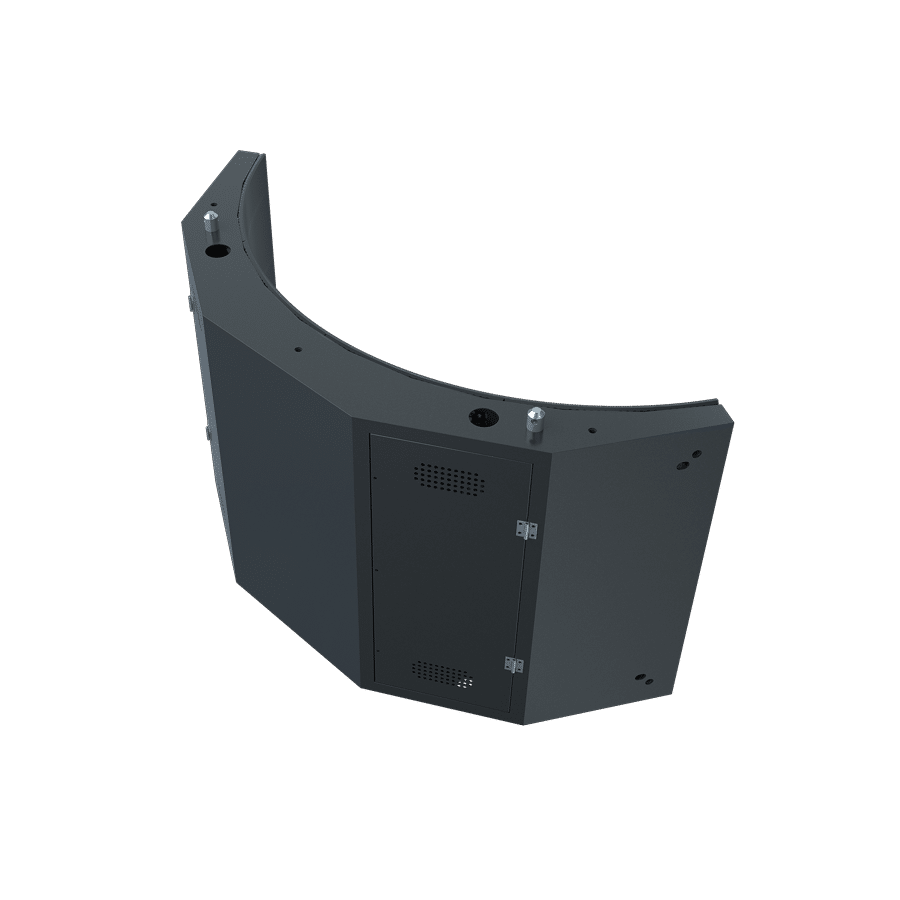

NIS Pro c13

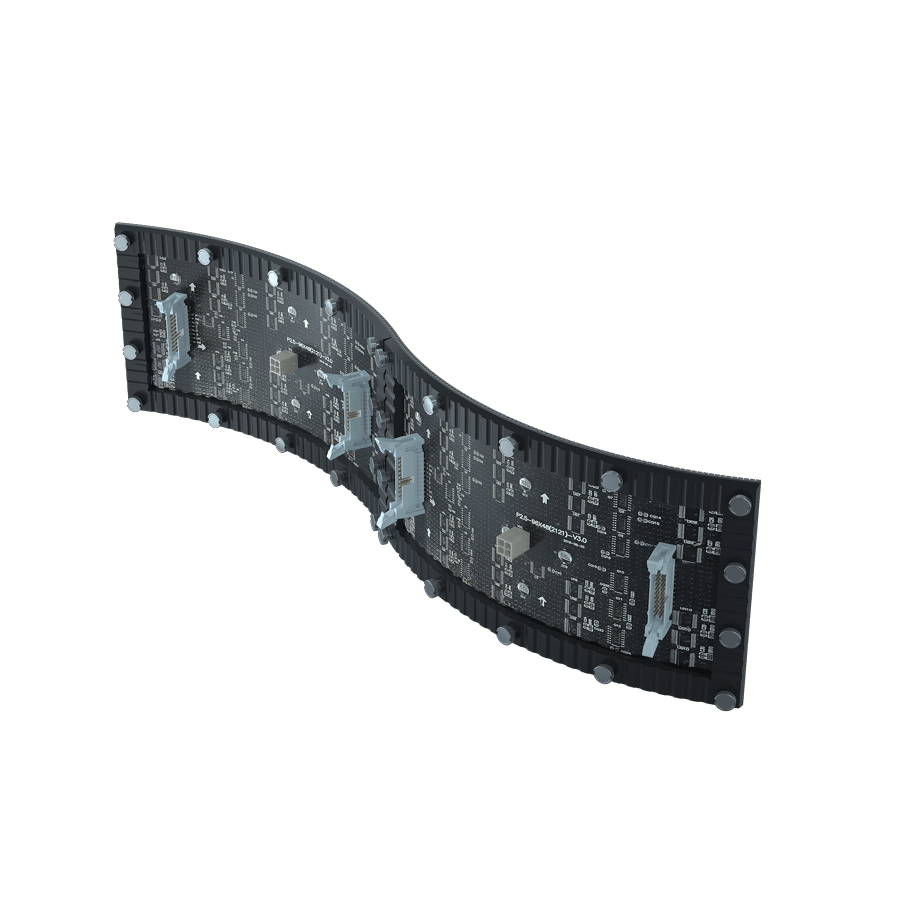

NIS Pro c15

Material & Build Quality

The PCB and module construction are designed for indoor use with an emphasis on durability and heat resistance.

This improves:

  • Stability over longer operating periods
  • Safety in enclosed environments
  • Consistency across the display

Custom Screen Configurations

Because the modules are flexible, the screen can be built in different formats depending on the project.

Common setups include:

  • Cylindrical displays
  • Curved feature walls
  • Double-sided displays
  • Layered or stepped installations



This is where the system is typically used—when a standard LED panel wouldn’t fit the design.

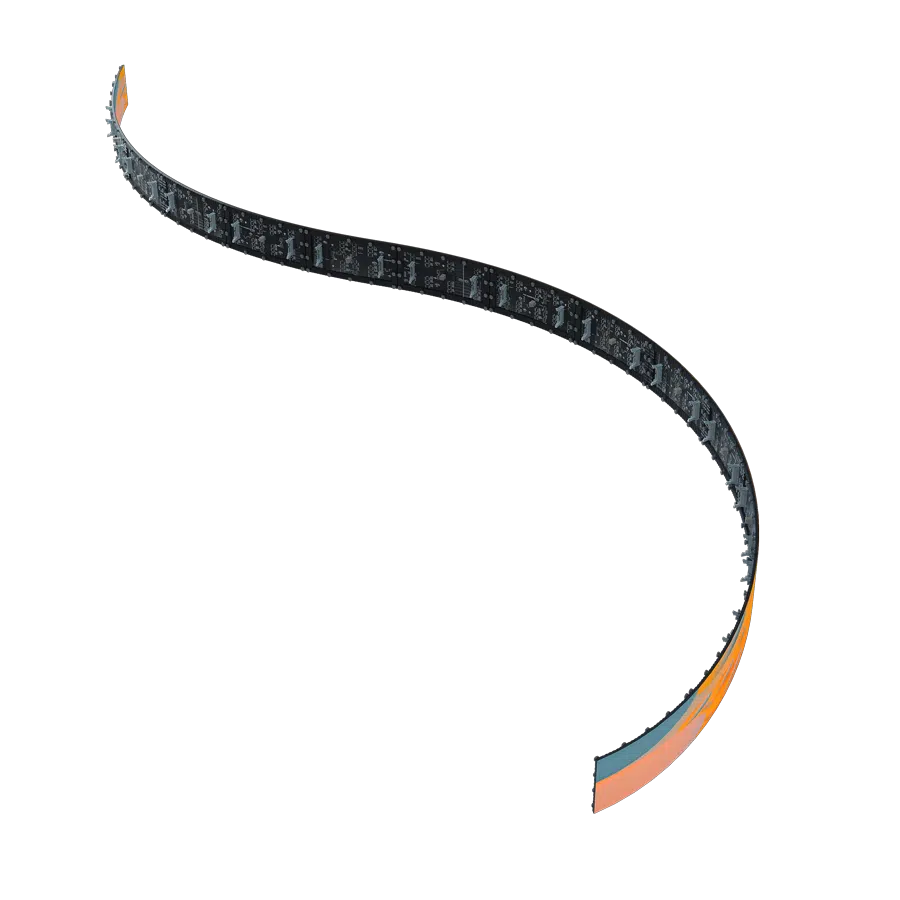

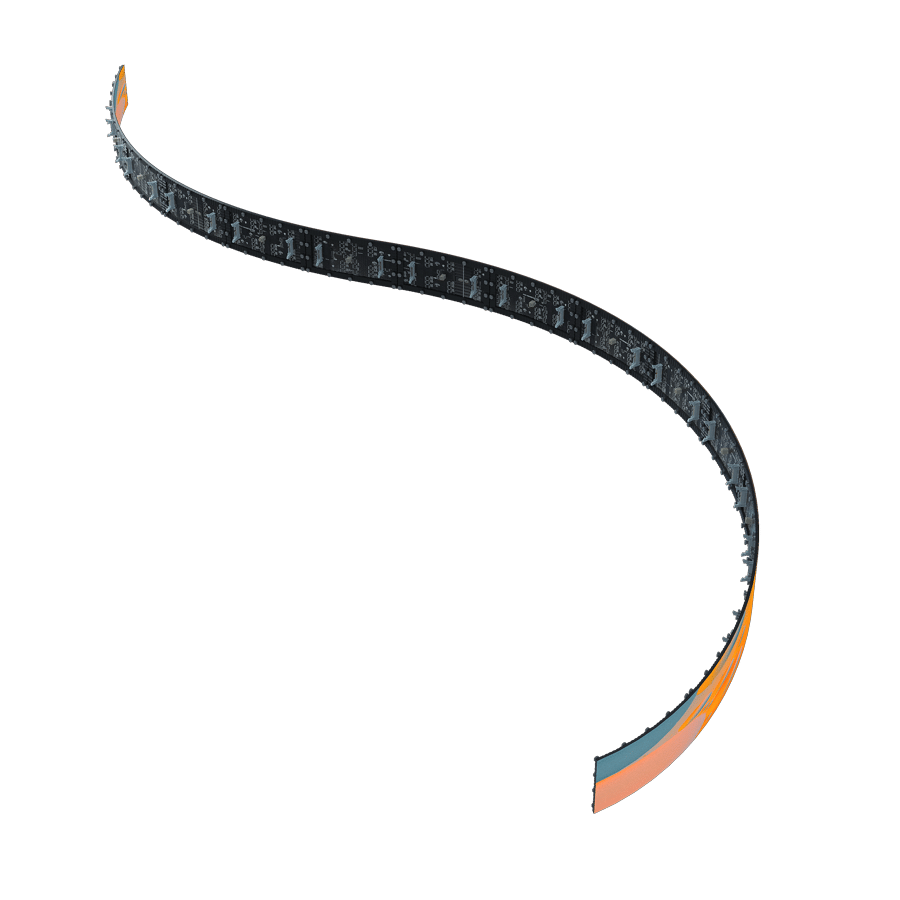

NIS Pro c07

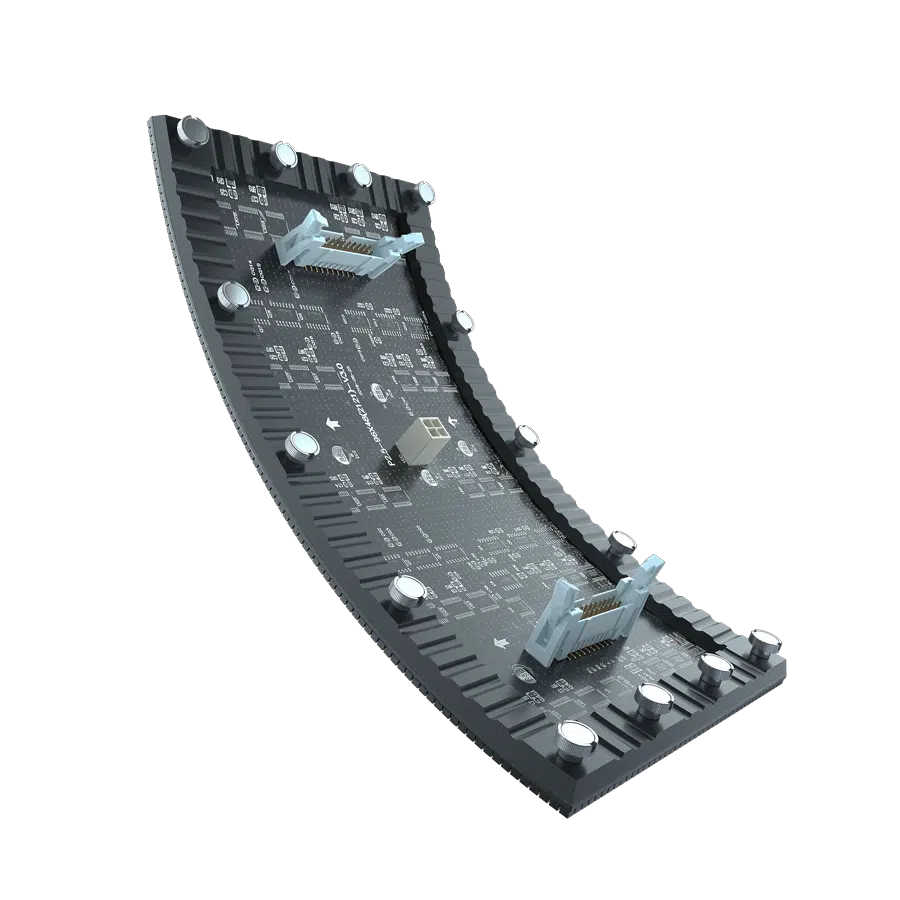

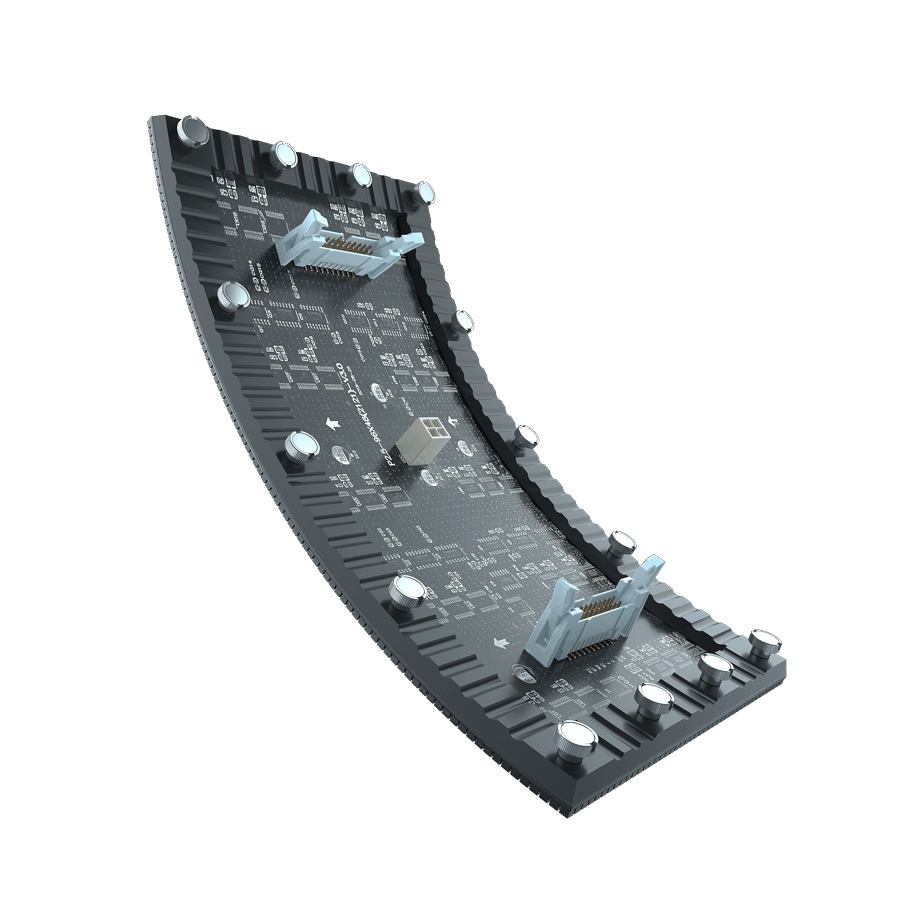

NIS Pro c05

Maintenance Access

Modules can be accessed and replaced individually, which keeps maintenance simple.

If a section needs replacing:

  • Only the affected module is removed
  • The rest of the screen remains in place



This reduces disruption, especially in fixed installations.

Technical Specifications

SpecificationNIS PRO 1.9NIS PRO 2.6
Pixel Pitch1.953 mm2.604 mm
LED TypeSMD1515 (Black)SMD1515 (Black)
Brightness600–800 cd/m²800–1000 cd/m²
Module Size250 × 125 mm250 × 125 mm
Module Resolution128 × 6496 × 48
Refresh Rate≥3840 Hz≥3840 Hz
Viewing Angle140° / 140°140° / 140°
Cabinet Size500 × 500 / 500 × 1000 mmSame
Cabinet Weight11.25 / 22.5 kgSame
Power Consumption640 / 210 W/m²640 / 210 W/m²

*Specifications may vary depending on configuration.

Flexible LED Display Applications

Curved LED Walls

Flexible LED modules can be used to create curved LED walls that follow the contours of architectural features while maintaining a continuous visual surface.

LED Column Displays

The NIS PRO Series can be used to wrap LED displays around columns, pillars and structural features, transforming architectural elements into high-impact digital display surfaces.

Retail & Brand Experience Displays

Curved LED displays help create visually distinctive retail environments, supporting product promotions, immersive content and brand storytelling.

Exhibition & Trade Show Displays

Flexible LED screens allow exhibition stands and event spaces to incorporate curved display surfaces that attract attention and support creative presentation concepts.

Museums & Immersive Environments

Flexible LED technology can be used within museums, galleries and immersive spaces where conventional flat screens are unable to achieve the desired visual effect.

Architectural LED Features

The NIS PRO Series can be integrated into architectural designs to create bespoke digital features, media walls and visually striking interior installations.

NIS Pro c17
09

NIS PRO Series Flexible LED Display FAQs

A flexible LED display uses specially designed LED modules that can bend and adapt to curved or irregular surfaces. Unlike conventional flat LED panels, flexible LED displays can be used to create curved walls, wrap around columns and form custom display structures while maintaining a continuous visual surface.
Yes. The NIS PRO Series is specifically designed for curved LED applications. Flexible modules can be configured to create both concave and convex curved LED walls, allowing displays to follow architectural features and custom design concepts.
Yes. The NIS PRO Series can be used to create LED column displays by wrapping flexible modules around circular or curved structures. This makes it suitable for retail environments, public spaces, exhibitions and architectural installations where standard flat displays are not practical.
Flexible LED displays are commonly used in retail environments, exhibitions, museums, showrooms, corporate reception areas, immersive installations and architectural display projects. Their ability to conform to curved surfaces makes them suitable for applications where conventional LED panels cannot achieve the required design.
The NIS PRO Series is available in 1.9mm and 2.6mm pixel pitch options. These fine pitch configurations provide clear image quality for indoor environments where viewers are positioned relatively close to the display.
Yes. Flexible LED displays are widely used in retail spaces to create eye-catching feature displays, curved video walls and branded digital experiences. Their ability to integrate into custom structures helps retailers create more distinctive visual environments.
Yes. The NIS PRO Series is well suited to exhibitions, trade shows and immersive environments where creative display formats are required. Flexible modules allow designers to create curved, cylindrical and non-standard display structures that help deliver engaging visitor experiences.
The NIS PRO Series uses a modular design that allows individual modules to be accessed and replaced when required. If a module needs servicing, only the affected section is removed, helping minimise disruption while maintaining the overall display structure.
