TST Series LED Video Wall Panels
Transparent LED Video Wall Panels for Touring, Events & Architectural Installations
Transparent LED video wall panels designed for touring, events and architectural installations where structural stability and visual impact are both required.
The open panel structure allows light and airflow to pass through the screen, reducing wind load while maintaining visibility. This makes the system suitable for stage builds, large-format displays and semi-permanent installations.
Built for production environments, the TST Series supports reliable setup, consistent alignment and straightforward maintenance.
TST Series

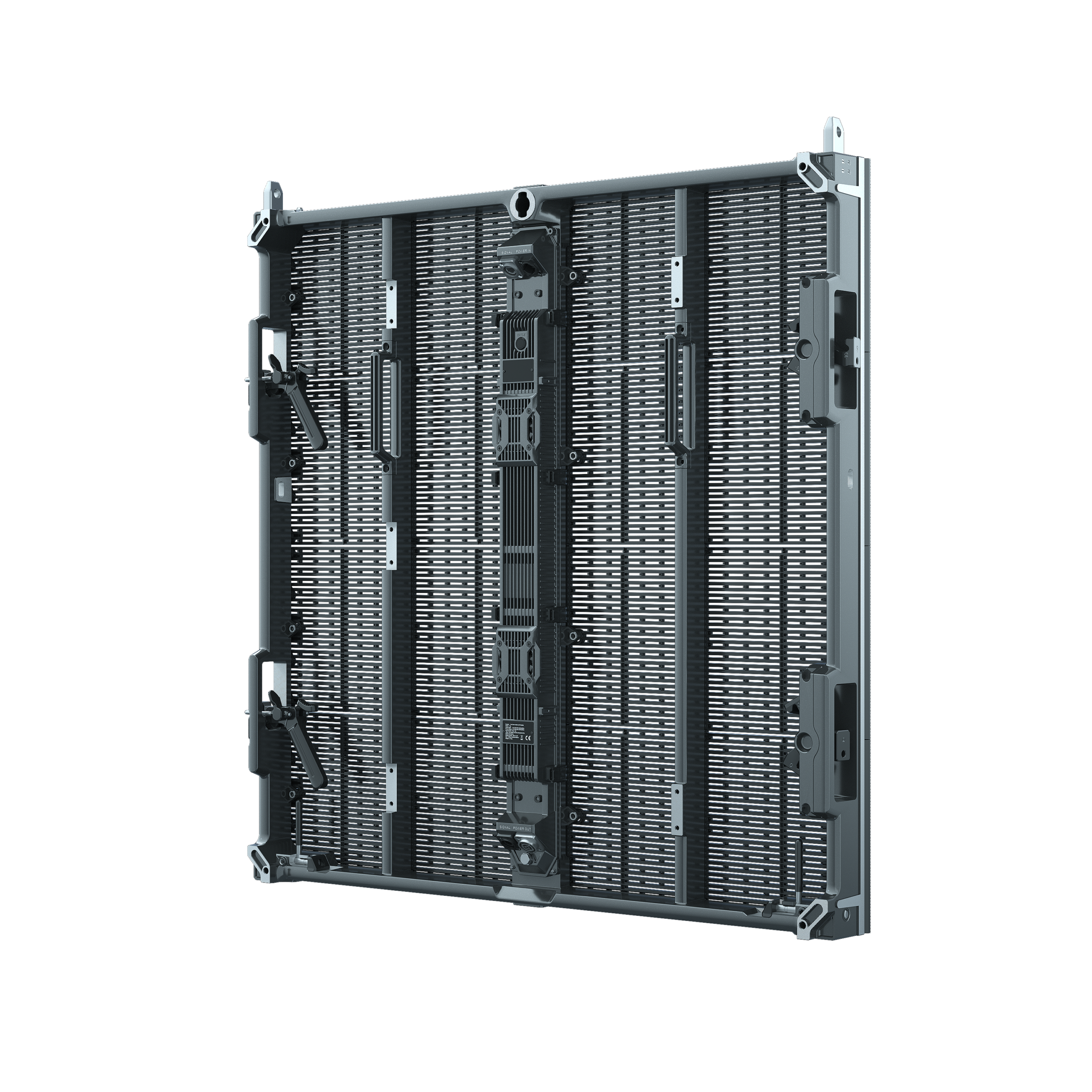

The TST Series is built around a reinforced cabinet design to improve stability in touring and outdoor environments.
Panels can be configured into flat or curved layouts, allowing flexible screen builds without affecting alignment. Front-access modules simplify servicing, while weather protection and structural bracing support reliable operation across repeated installations.
Features:
- Transparent LED video wall panels with approx. 30% transparency
- Reduced wind load for outdoor and large-format installations
- Front-access maintenance for efficient servicing
- Reinforced cabinet design for touring and repeated handling
- Indoor and outdoor suitability with weather protection
- Flexible splicing for flat and curved configurations

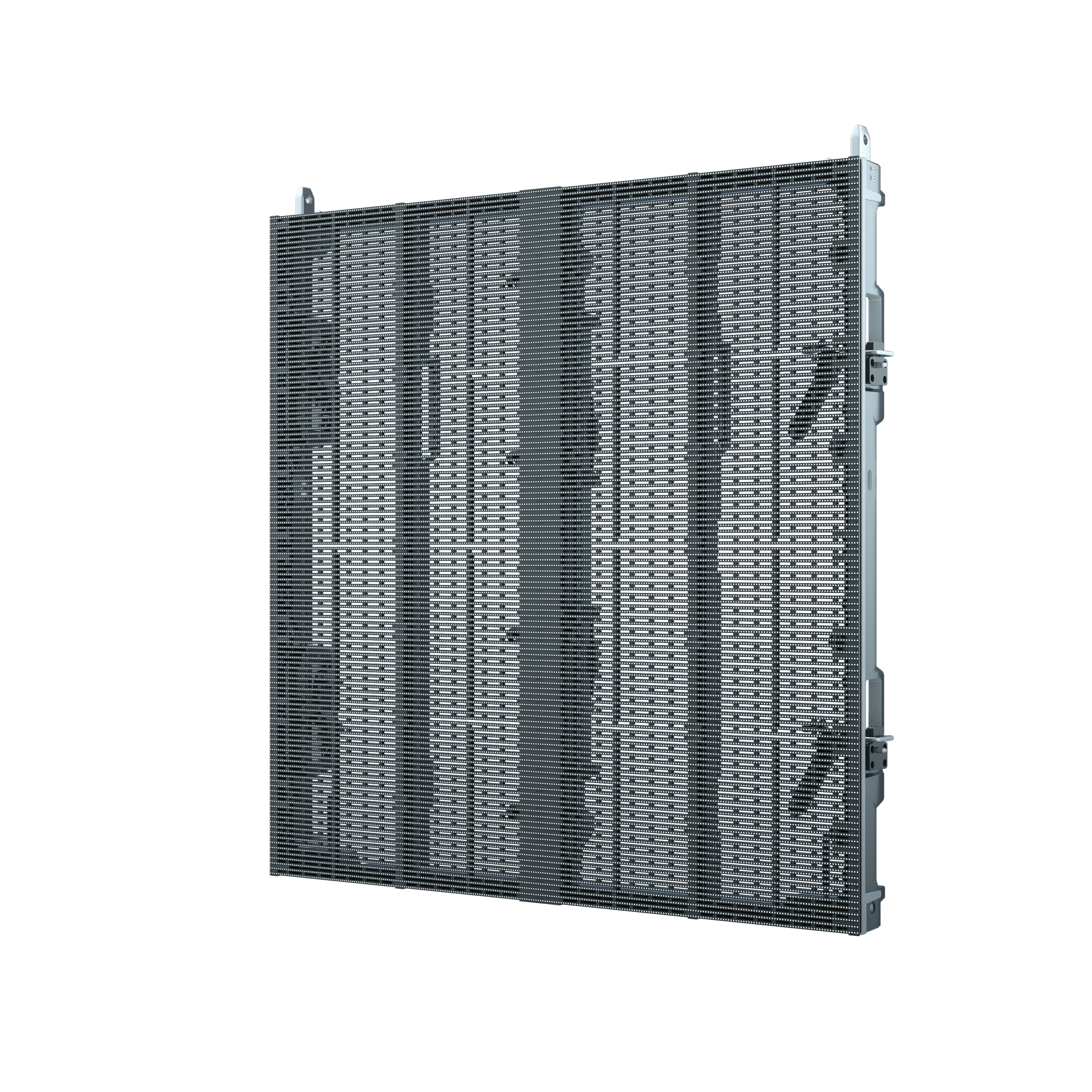

Transparent Panel Structure
The open panel design allows light and airflow to pass through the screen, helping to reduce wind resistance in outdoor environments while maintaining visibility of backgrounds and stage elements.
This makes the system suitable for stage builds, retail displays and architectural installations where visual openness is required.
Weather Protection for Indoor & Outdoor Use
The panels are designed to operate in both indoor and outdoor environments, with protective features that support consistent performance in rain, dust and varying conditions.
This ensures reliability across touring, events and semi-permanent installations.
Front Service Access
Front-access modules allow maintenance to be carried out without removing surrounding panels. This reduces downtime and simplifies servicing in time-critical environments.
Particularly useful for rental and touring setups where quick access is essential.
Flexible Splicing & Curved Configurations
Panels can be configured into flat, curved and angled layouts, allowing a range of screen designs depending on the application.
This flexibility supports stage environments, creative builds and architectural installations without requiring custom panel systems.

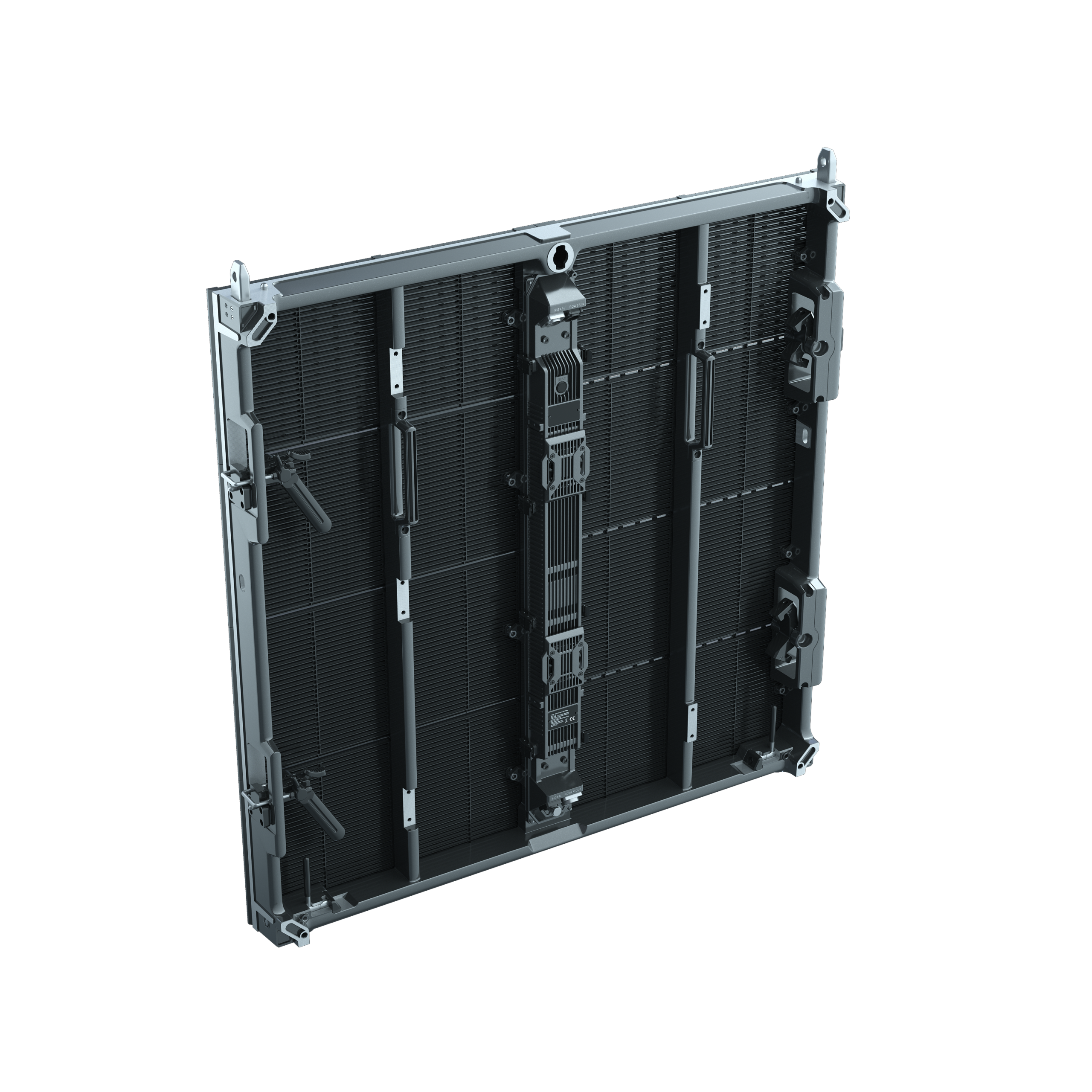

Modular Panel Design
The system uses a modular structure that allows individual components to be removed and replaced independently. This improves maintenance efficiency and supports faster on-site servicing.
It also simplifies transport and handling across repeated installations.
High Brightness & Stable Visual Performance
The panels deliver consistent visual output with high brightness, stable refresh rates and accurate greyscale reproduction. This ensures clear, smooth visuals across both indoor and outdoor environments, including camera-facing applications.
High refresh rates reduce flicker and motion artefacts, while improved greyscale handling supports better detail in both bright and low-light conditions.
The module structure is designed to protect internal components, helping maintain performance even if individual LEDs are damaged during use.
Versatile Curved Design
With the pixel pitch of 3.9mm to 7.8mm, TST series supports angles of -5°, 0°, and 10°.
For the pixel pitch of 7.8mm, it accommodates – 10°, 0°, and 10°.
Which meets the diverse needs of various applications to create a personalized display.

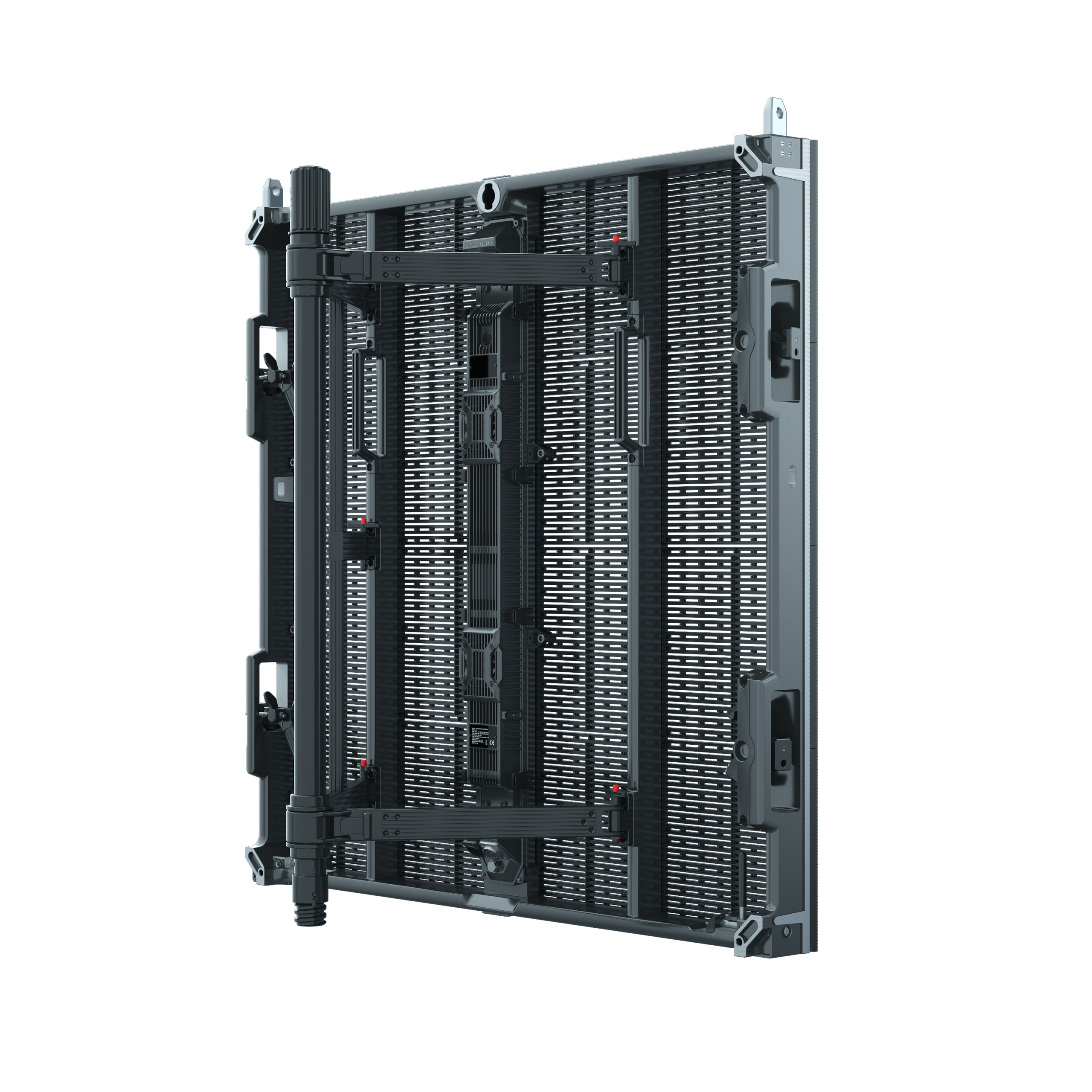

Wind Resistance & Stability
The transparent structure reduces wind load, while optional bracing systems improve overall stability in outdoor installations.
This combination makes the panels suitable for large-format screens where structural performance is critical.
Load-Bearing Performance
Exceptional Load-bearing Capacity: AM Iransparent screen has undergone comprehensive lension lesting. where a 7.9KG cabinel can withstand forces of up to 1800KG.
Technical Specifications
| Model | TST 3.9–7.8 | TST 6.9 |
|---|---|---|
| Pixel Pitch (mm) | 3.906 – 7.812 | 6.944 |
| LED Configuration | SMD1921 (Black / White) | SMD2727 (White) |
| Adjustable Brightness (cd/m²) | 3500 (Black) / 5000 (White) | 5500 |
| Module Size (W × H) (mm) | 500 × 250 | |
| Module Resolution | 128 × 32 | 72 × 36 |
| Refresh Rate (Hz) | 7680 | |
| Viewing Angle (H / V) | 140° / 140° | 140° / 107° |
| Greyscale (Bit) | 14 | 16 |
| Cabinet Size (W × H × D) (mm) | 1000 × 1000 × 96 / 1000 × 1000 × 125 (Wind-bracing system) | 1000 × 1000 × 96.8 / 1000 × 1000 × 125.4 (Wind-bracing system) |
| Cabinet Weight (kg / panel) | Solid: 22 / 26 Hollow: 22.2 / 26.5 (Wind-bracing system) | 24.5 / 29 (Wind-bracing system) |
| Power Consumption (Max / Avg) (W/m²) | 560 / 187 | |
* Technical specifications are subject to change without prior notice. Please contact our sales team for the latest information.
TST Series Led Displays – FAQs
What is the TST Series designed for?
The TST Series is designed for touring productions, large-scale events and semi-permanent installations where stability, safety and transparency are critical. It is well suited to concert stages, exhibitions, architectural displays, automotive showcases and shopping malls.
How transparent is the TST Series LED display?
The TST Series offers a 30% transparency rate, allowing wind and light to pass through while maintaining strong visual clarity. This enhances depth, lighting integration and background visibility, making it ideal for layered stage designs and architectural environments.
Is the TST Series suitable for outdoor use?
Yes. The TST Series is built for both indoor and outdoor applications, featuring advanced waterproof protection, a reinforced cabinet structure and an integrated wind-bracing system. This ensures reliable performance in challenging weather conditions.
What makes the TST Series suitable for touring applications?
The TST Series features a touring-grade cabinet design, reinforced stability, high wind resistance and durable components. These characteristics make it ideal for frequent transportation, repeated installation and demanding live event schedules.
Can the TST Series be configured into curved or creative screen shapes?
Yes. The TST Series supports flat, curved and right-angle configurations, with adjustable angles depending on pixel pitch. This allows designers to create custom screen shapes without compromising alignment, stability or visual quality.
How easy is the TST Series to maintain during live events?
The TST Series is designed for convenient front maintenance, with a modular cabinet structure, snap-on power box and flexible positioning columns. Individual components can be accessed and replaced quickly, reducing downtime during events.
How does the TST Series improve safety and stability?
The TST Series incorporates an integrated wind-bracing system and has undergone comprehensive tensile testing to ensure high load-bearing capacity. This provides enhanced stability, especially for outdoor stages and large-scale installations.
What happens if LED lamps are damaged during use?
The TST Series uses a reinforced module welding plate design, meaning the structure remains intact even if individual LED lamps are damaged. This improves maintainability and reduces the risk of screen failure during live use.
Is the TST Series suitable for architectural installations?
Yes. In addition to live events, the TST Series is commonly used in architectural and commercial environments such as shopping malls and exhibitions, where transparency, visual impact and structural reliability are essential.
