MT Series Fine Pitch LED Video Wall Panels

Indoor Fine Pitch LED Panels for Conferences, Exhibitions & Close-View Displays

The MT Series is a fine pitch LED panel designed for indoor environments where image clarity and close viewing performance are essential.

With a lightweight cabinet design and precise panel alignment, it is suited to conferences, exhibitions, broadcast environments and corporate AV installations.

MT Series

The MT Series combines fine pixel pitch with high refresh rates and consistent panel alignment to deliver clear, detailed images in close-view environments.

Designed for indoor rental and event use, it supports fast setup, reliable operation and efficient maintenance across repeated installations.

Features

Fine pitch LED for close viewing
High refresh rate for camera use
Lightweight cabinets for handling
Seamless panel alignment
Front and rear maintenance access
Supports flat and curved configurations

High-Resolution Close Viewing

Fine pixel pitch and high pixel density deliver sharp, detailed images without visible pixelation.

A high refresh rate ensures stable, flicker-free performance for camera-facing environments, including conferences and broadcast use.

Seamless Panel Alignment

Precision cabinet design maintains consistent flatness across the display, reducing visible joins between panels.

This supports a uniform image surface, particularly important for high-resolution content and close viewing distances.

Lightweight Cabinet Construction

Lightweight cabinet design improves handling, transport and installation efficiency.

Supports faster setup and reduced strain during repeated rental use.

Efficient Maintenance Access

Modules and components can be accessed and replaced quickly, reducing downtime during installation and live use.

Designed to support fast servicing in time-sensitive environments.

Fast Installation & Alignment

Magnetic alignment and locking systems support quick, accurate panel positioning.

Reduces setup time and improves consistency across large displays.

Flexible Screen Configurations

Supports both flat and curved installations, allowing displays to be configured for different environments and layouts.

Suitable for conference stages, exhibition stands and corporate AV displays.

Integrated Edge Protection

Built-in edge protection helps reduce the risk of pixel damage during handling, transport and installation.

Supports durability across repeated rental use.

Various Installation Options

The panel architecture is engineered for multi-method deployment, supporting both rigging (hanging) and ground-supported (stacking) installations. Integrated load-bearing points, reinforced locking mechanisms, and alignment guides ensure structural stability across large formats.

The system maintains precise cabinet alignment under load, while the dual-method design allows technicians to switch between flying frames and stacking systems depending on the venue’s rigging capacity, weight limits, and operational constraints.

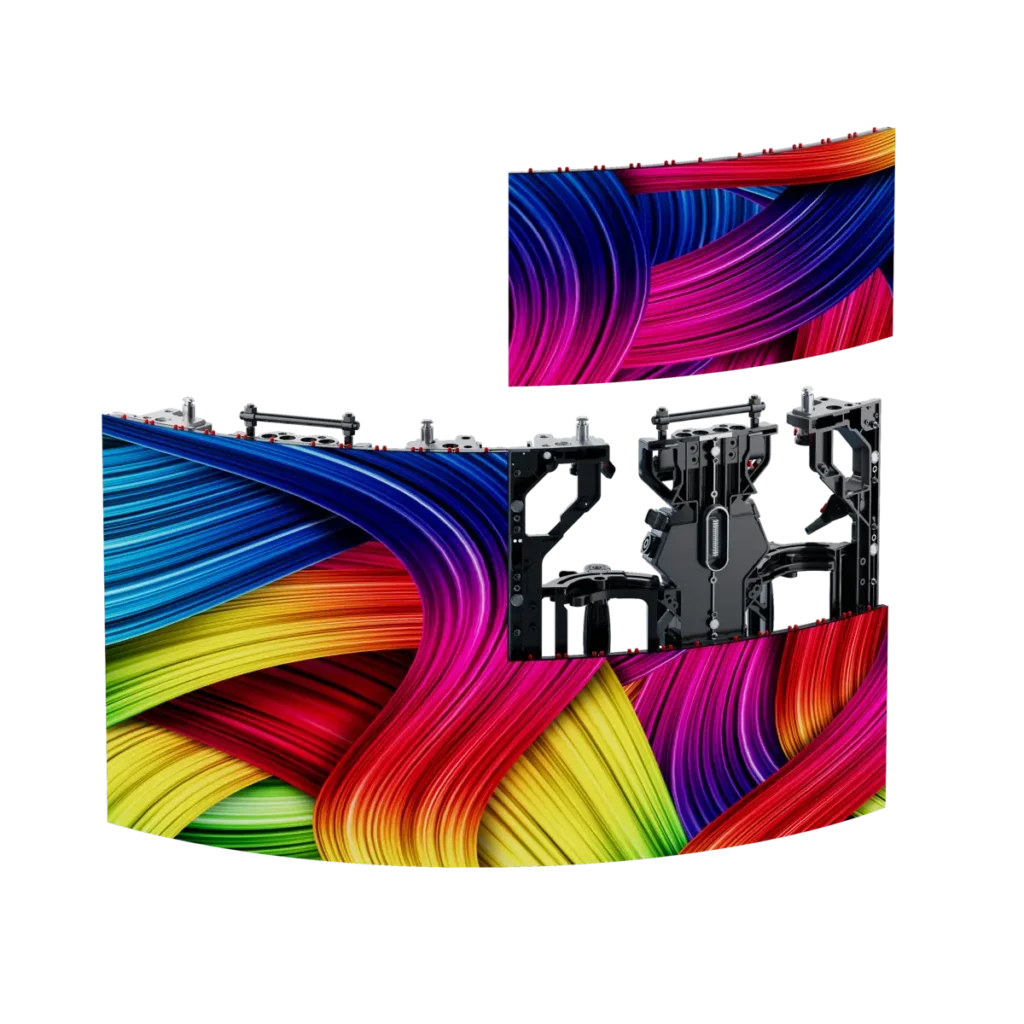

Reliable and Precise Curve

The cabinet’s precision-engineered curvature system allows panels to lock into consistent angles without visual distortion. This ensures seamless alignment across large displays, whether flat, concave, or convex, while maintaining structural stability during rental use.

The mechanism delivers smooth transitions between panels, enabling creative screen shapes with reliable repeatability from one setup to the next.

MT Series Configurations

The MT Series supports a range of configurations beyond standard flat displays.

MT Curve (MT Flex)

Supports curved layouts including arcs and cylindrical designs for immersive indoor displays.

MT Cube

Multi-face cube configurations for exhibitions, brand activations and experiential installations.

Technical Specifications

Model	MT1.5	MT1.9				MT2.3	MT2.6
Pixel Pitch (mm)	1.562	1.953				2.310	2.604
LED Configuration	SMD1010 (Black)	SMD1212 (Black)	AHB1212 (Black)	XF1212 (Black)	SMD 4 in 1 (Black)	SMD1515 (Black)
Adjustable Brightness (cd/m²)	1200	1000	1200	1500	1200	1000
Module Size (WxH mm)	250×250
Module Resolution	160×160	128×128				108×108	96×96
Refresh Rate (Hz)		7680
Viewing Angle (H/V)	160°/160°
Grayscale (Bit)	16	15
Cabinet Size (WxHxD mm)	500×500×76.5
Cabinet Weight (kg/panel)	7.6
Power Consumption (Max/Avg W/m²)	540/180	600/200	576/190	600/200		540/180

MT Series Led Display - FAQs

What type of applications is the MT Series designed for?

The MT fine-pitch cabinets are designed for indoor rental and staging environments, including conferences, exhibitions, corporate events, TV studios and stage performances where close viewing distances and high detail are required.

What pixel pitches are available in the MT range?

The MT platform is available in multiple fine pixel pitches (add your exact options here, e.g. 1.5mm, 1.9mm, 2.6mm), allowing you to match image resolution to viewing distance and screen size for each project.

Is the MT Series suitable for on-camera use?

Yes. High-refresh driving ICs and stable grayscale performance at low brightness make the MT cabinets ideal for IMAG, broadcast and filmed events, helping to minimise flicker, banding and moiré on camera.

How easy is it to install and dismantle MT cabinets on site?

Cabinets connect vertically with built-in positioning magnets and ratchet or snap locking options, so technicians can build or strike a wall quickly. The lightweight magnesium alloy frame further speeds handling and reduces rigging load.

How is maintenance handled on MT Series LED walls?

A quick-release power box and modular construction mean PSU, receiving card and modules can be swapped rapidly from the rear, keeping downtime to a minimum during rental operations or live events.

Can MT panels be used to create curved LED walls?

Yes. The cabinet design supports precise curved configurations, enabling concave or convex screen designs for creative backdrops while maintaining accurate module alignment and consistent image quality.

What is the approximate cabinet weight?

Each MT magnesium-alloy cabinet weighs around 7.6 kg, making it significantly lighter than many comparable LED systems and easier to transport, rig and de-rig on busy show schedules.

What protection features help prevent LED damage during rental use?

The MT design incorporates automatic edge protection and robust corner detailing to help shield LED pixels from knocks during transport, stacking, hanging and day-to-day handling.
