UR Pro Series LED Displays
Ultra-Lightweight Rental LED Displays for Live Events & Touring Productions
The UR Pro Series is a professional rental LED display solution designed for live events, touring productions and temporary installations where speed, reliability and visual consistency are essential. Built around a lightweight cabinet design and a refined minimalist aesthetic, the UR Pro Series delivers strong performance without unnecessary complexity.
With fast-locking mechanisms and a durable structure optimised for repeated use, the UR Pro Series is ideal for rental environments that demand quick setup, frequent handling and dependable operation across a wide range of event applications.
UR Pro Series

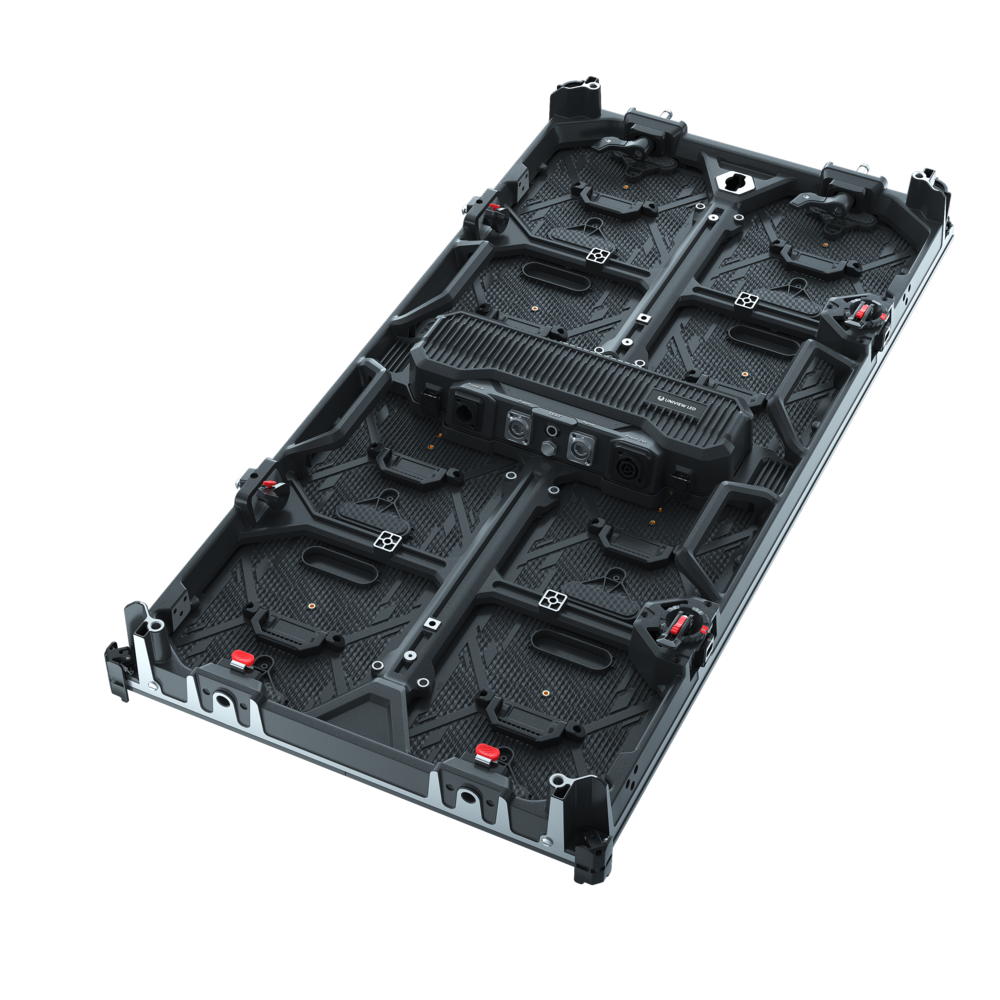

The UR Pro Series continues the evolution of UNIVIEW’s rental display technology, combining a lightweight cabinet structure with precise engineering to support fast assembly and seamless screen alignment. Its upgraded semi-covered bottom shell design enhances protection while maintaining ease of handling during transport and installation.
Designed specifically for rental use, the UR Pro Series features universal LED modules, user-friendly locking systems and flexible configuration options. This allows rental companies and production teams to build flat, curved or creative displays efficiently while maintaining excellent visual performance and long-term reliability.
Features
- Ultra-lightweight cabinet design for easy handling
- Stable and reliable performance for repeated rental use
- Fast installation with handle-type quick locking system
- Precise, seamless splicing for clean visual presentation
- Universal modules for simplified maintenance
- Designed for creative and flexible screen configurations

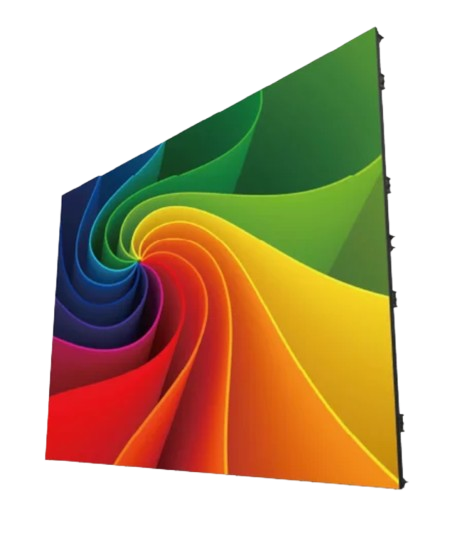

Outstanding Visual Performance
High Contrast Ratio
Black face lamp of 4500 Nits is used to ensure much higher contrast than most commonly used on the market.
High Refresh Rate
With high refresh rate of 15,360Hz, UR Pro provides smooth display and natural transitions, dramatically improving the audience’s visual experience
Universal Modules
Easy Maintenance
Each module is standardised at 250*500mm and fully compatible with the large or small cabinet frame for easy management and maintenance.
Quick Servicing
Universal module uses magnets and screws together enabling convenient and quick servicing.

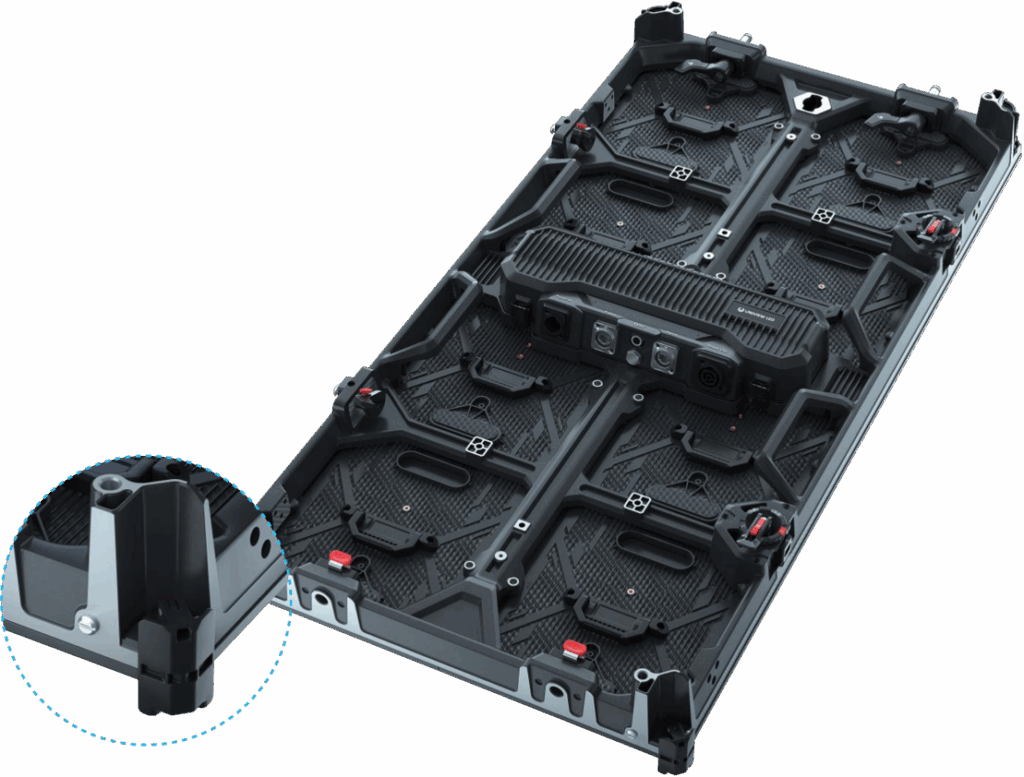

Multiple Protection
Built with event conditions in mind, the cabinet includes protective design features to minimise risk during transport, rigging, and dismantling. These safeguards extend the lifespan of the LED modules and ensure consistent performance.
Semi-Covered Module Shell Design
The UR Pro Series features a refined semi-covered module shell that helps keep the cabinet slim while improving heat dissipation and overall panel flatness.
To protect the electronics during transport and handling, the module includes built-in anti-collision pads that shield the PCB and reduce the risk of damage — making long-term maintenance easier and more reliable.

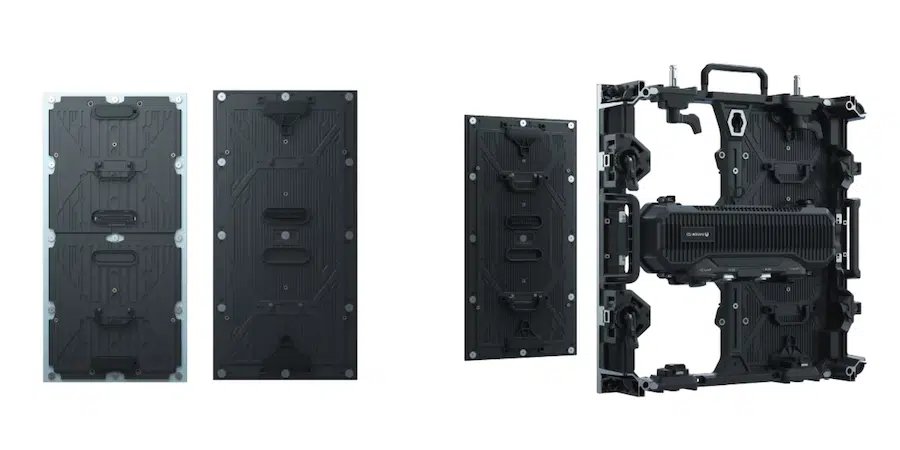

Anti-Bump Welding Plate Design
The welding plate of modules will not be damaged even if the LED lamps were knocked off, which greatly improves the LED lamp maintainability.

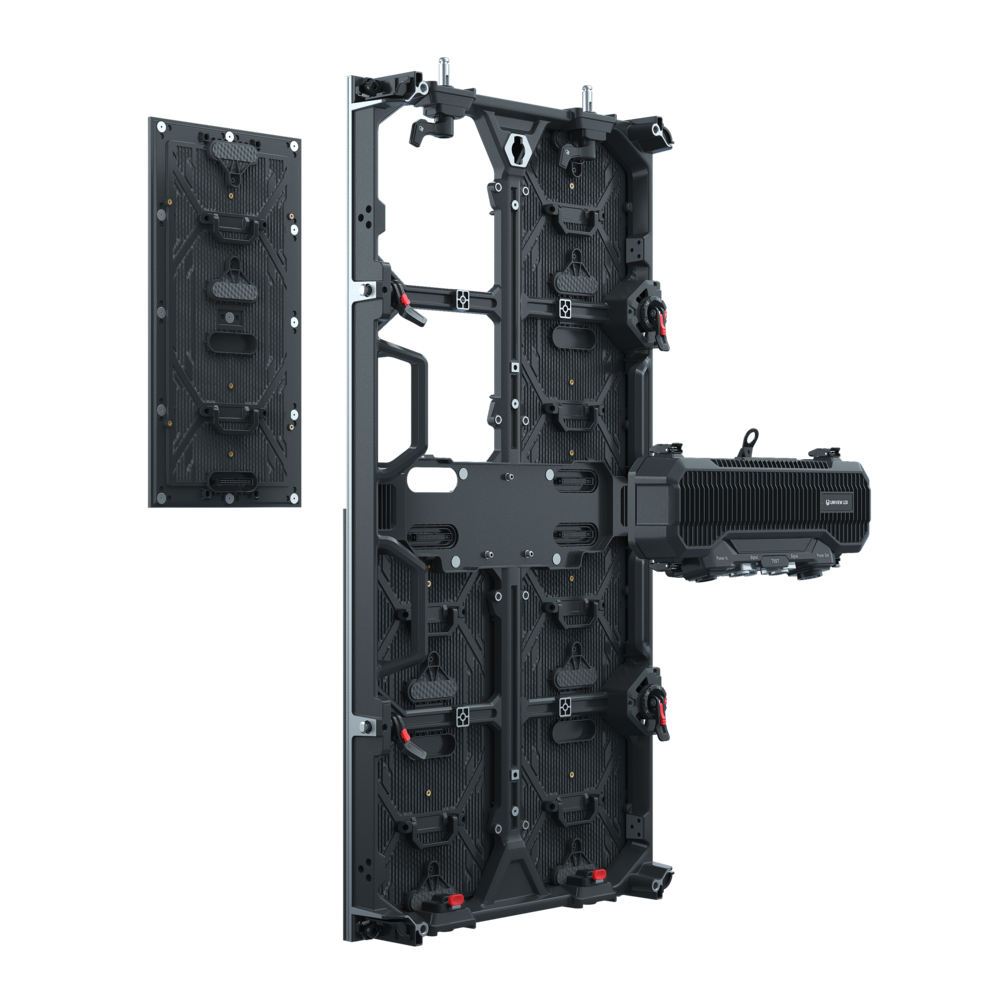

Easy Maintenance
Modules can be quickly removed and serviced without tools, making maintenance efficient even in fast-paced rental environments. This front-access design reduces downtime and keeps operations running smoothly.

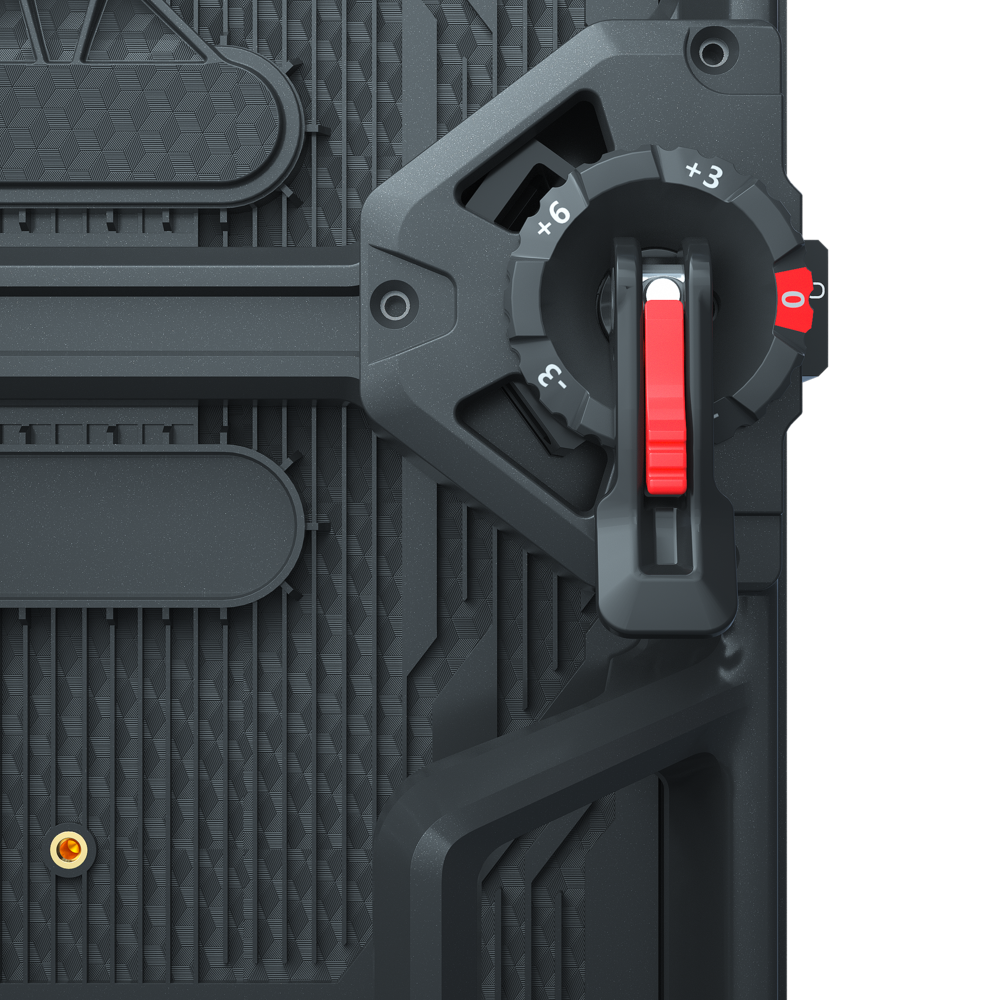

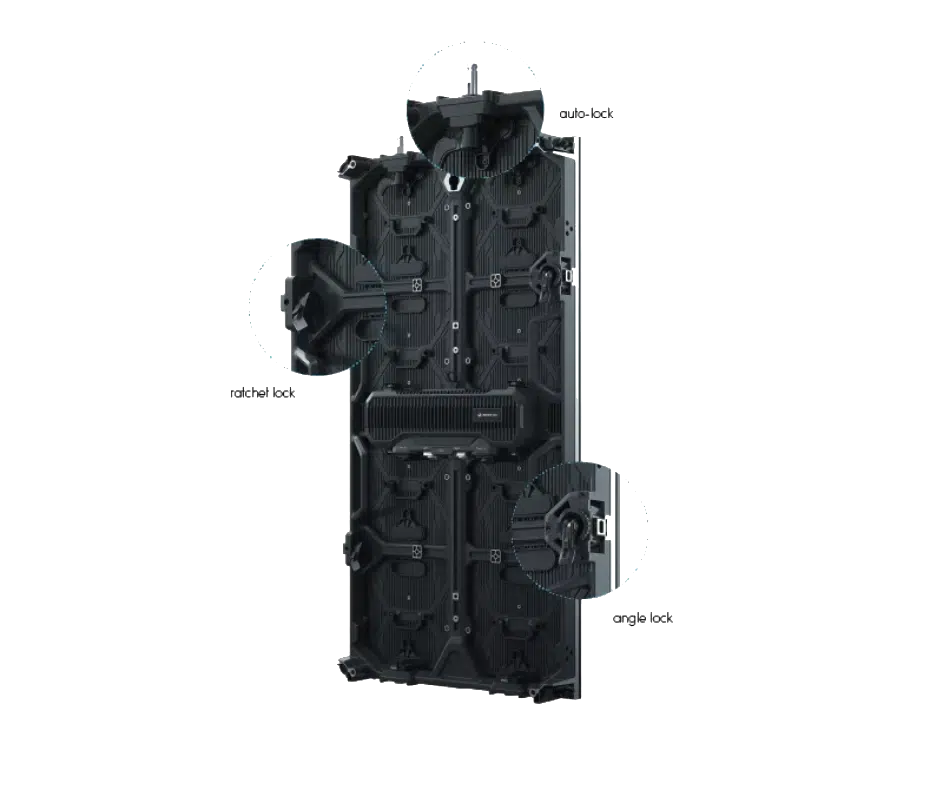

Though Revamp of Side Locks

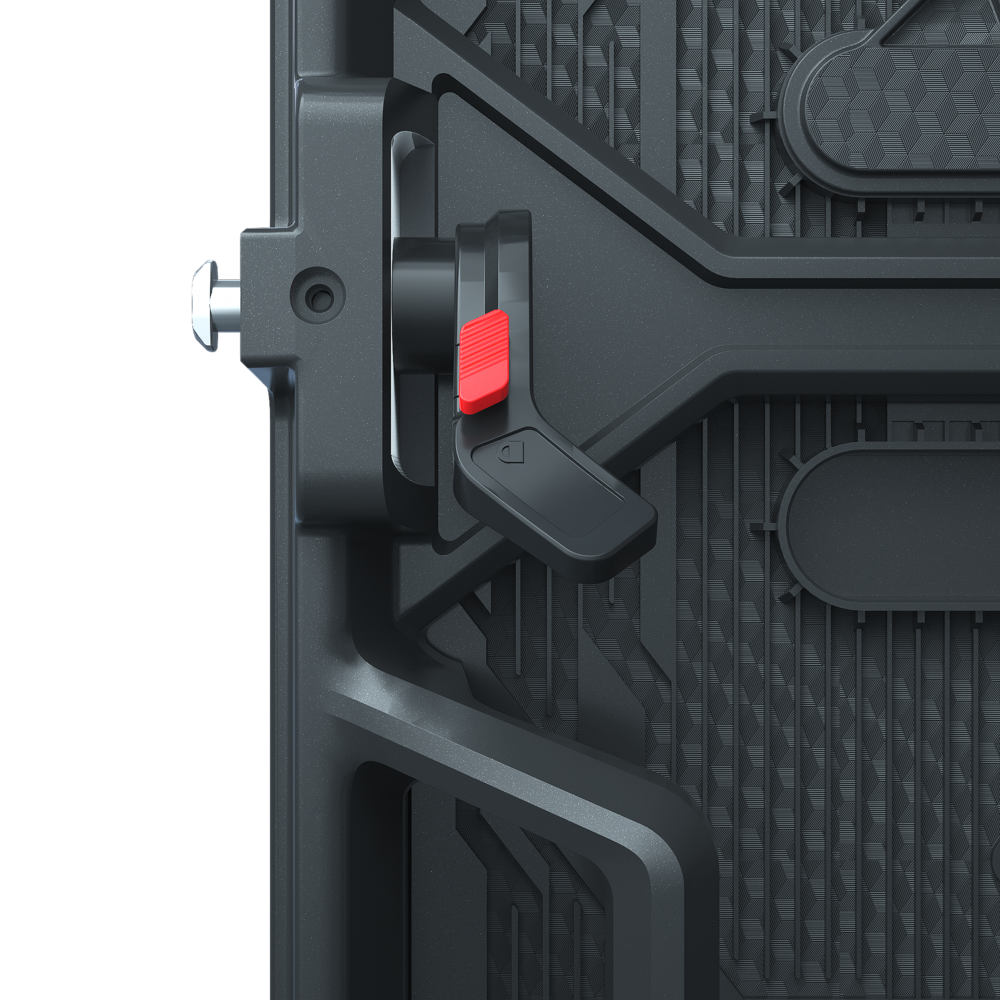

Innovative angular locking mechanism provides angle at adjustments (0°, ±3°, ±6°).
Innovative patented auto-locking system at top and bottom enables fast and simple assembly.

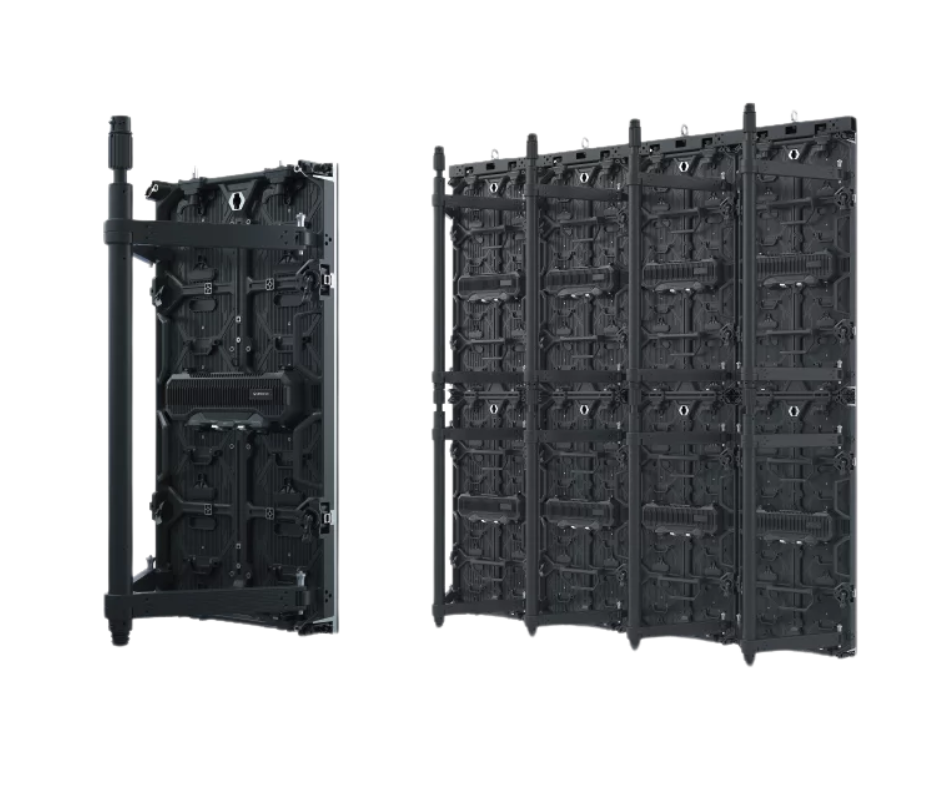

Versatile Installations
Rigging and floor support components to support both hanging and stacking..

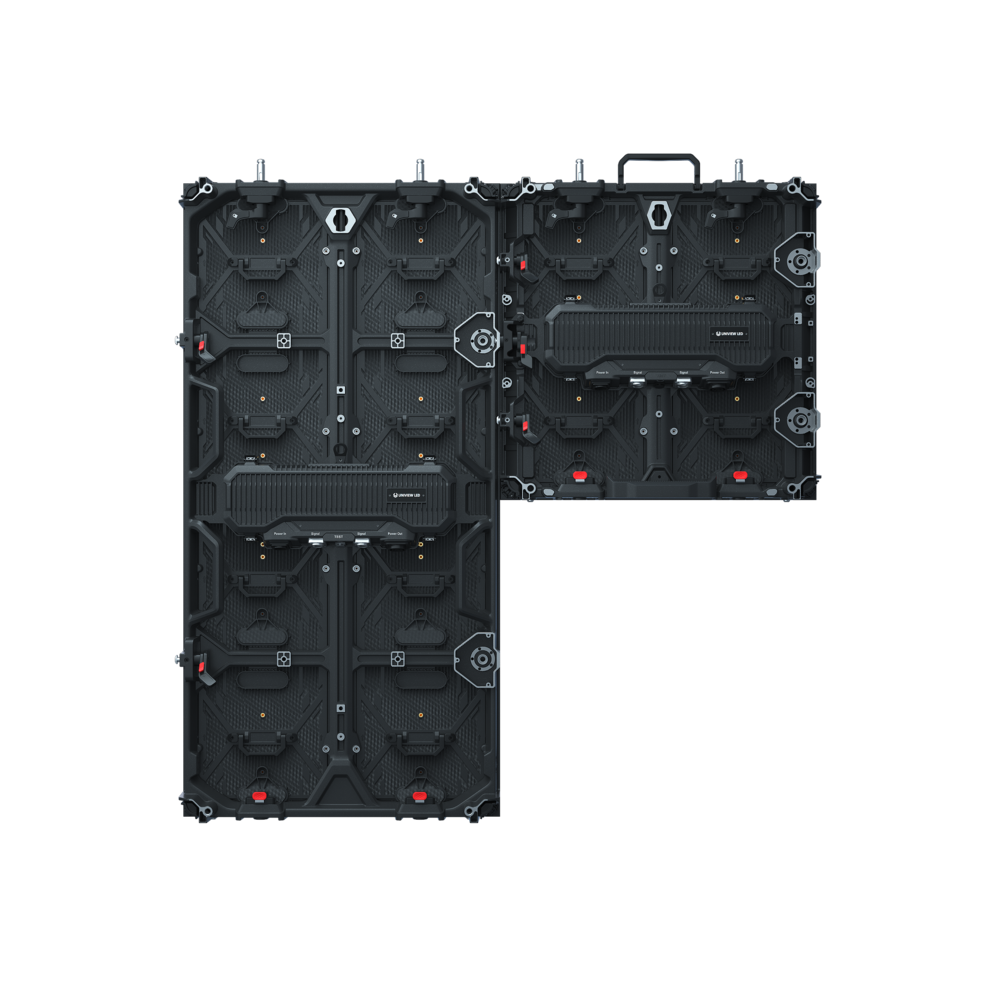

Multifunctional Splicing
The cabinet design with the 500*1000 and 500*500 sizes allows for flexible splicing to meet the diverse needs of different installation environments.

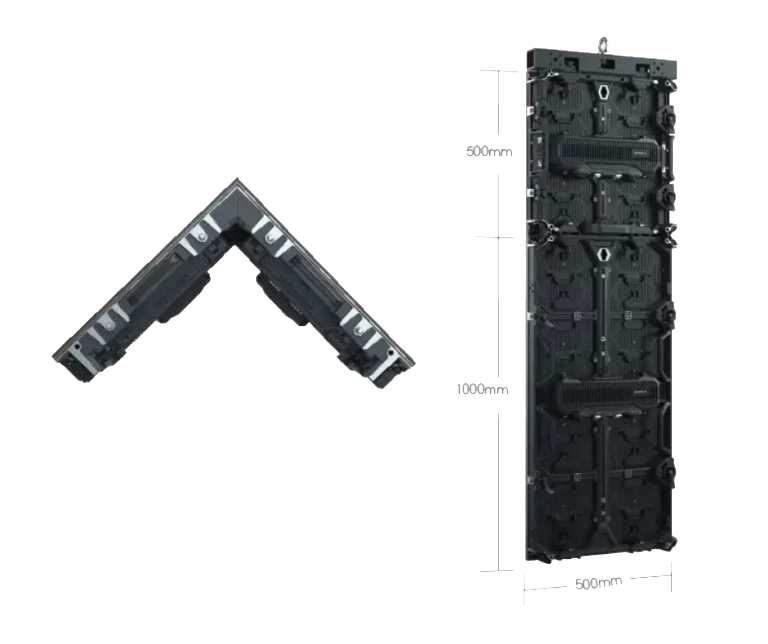

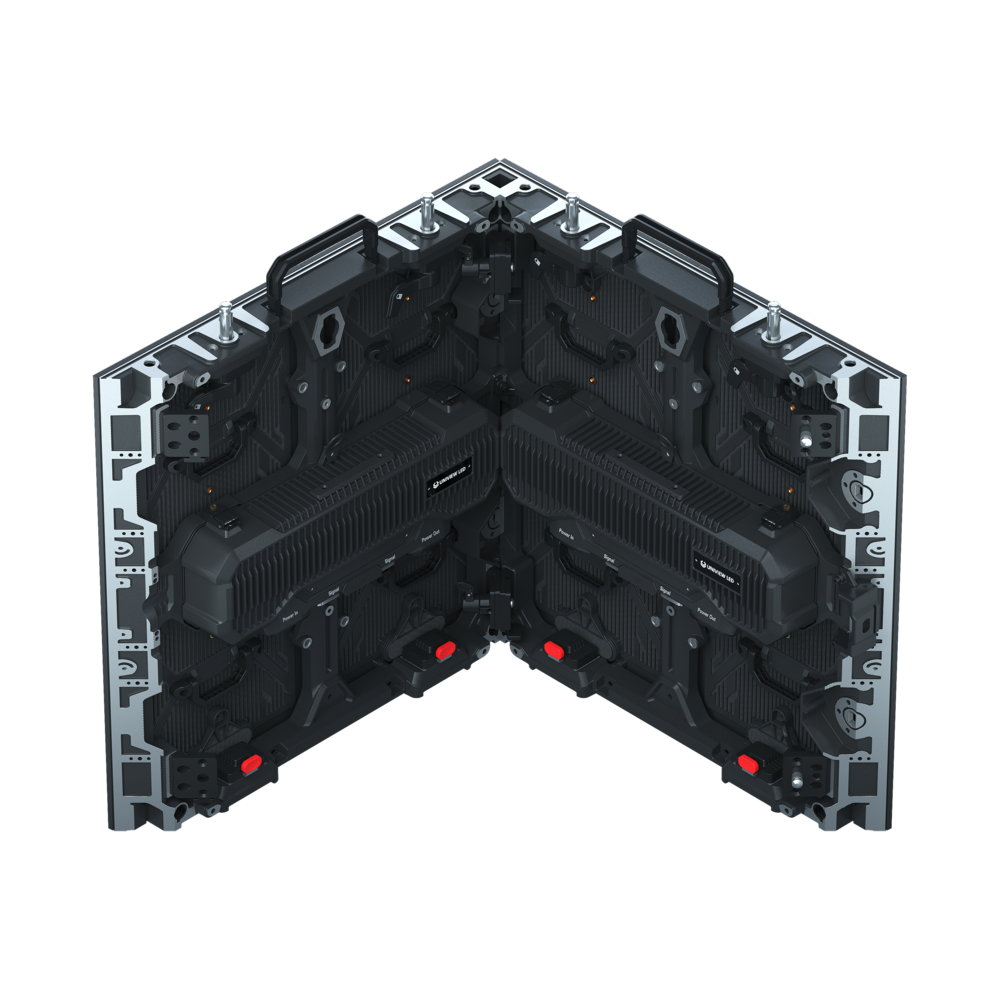

90°Splicing
500*500mm cabinet can be cut and 90 spliced at the edges to achieve the effect of vertical display screen

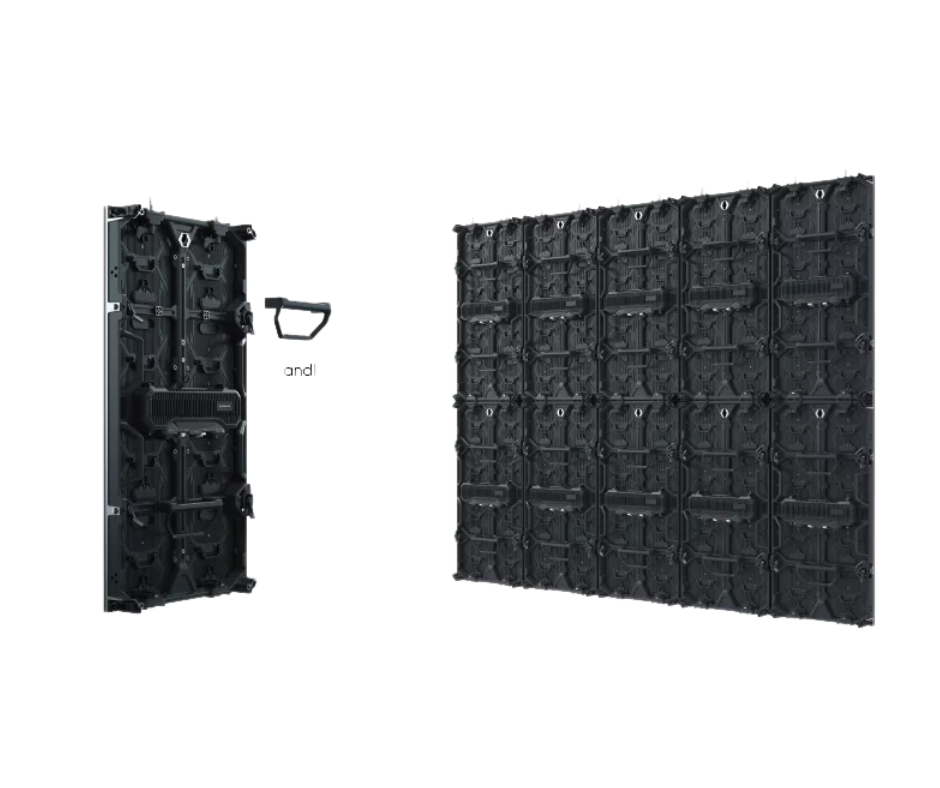

Climbable Handle (optional)
Optional climbing handle is available on the new UR Pro cabinets for easy handling, installation and maintenance.
Windproof Frame
Ultimate Versatility

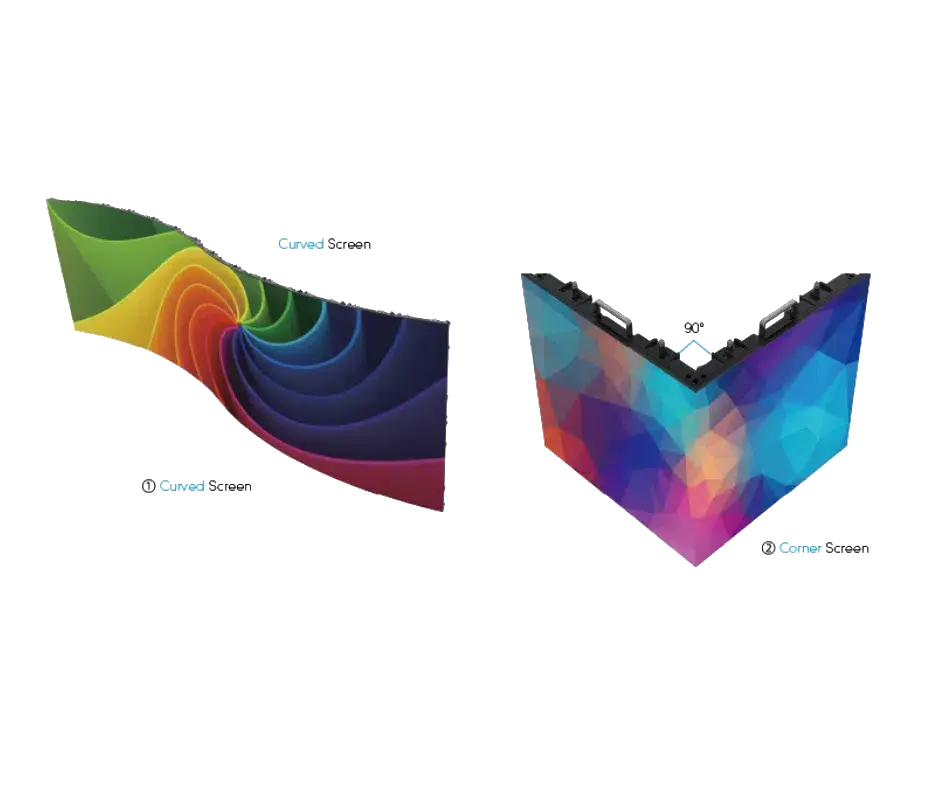

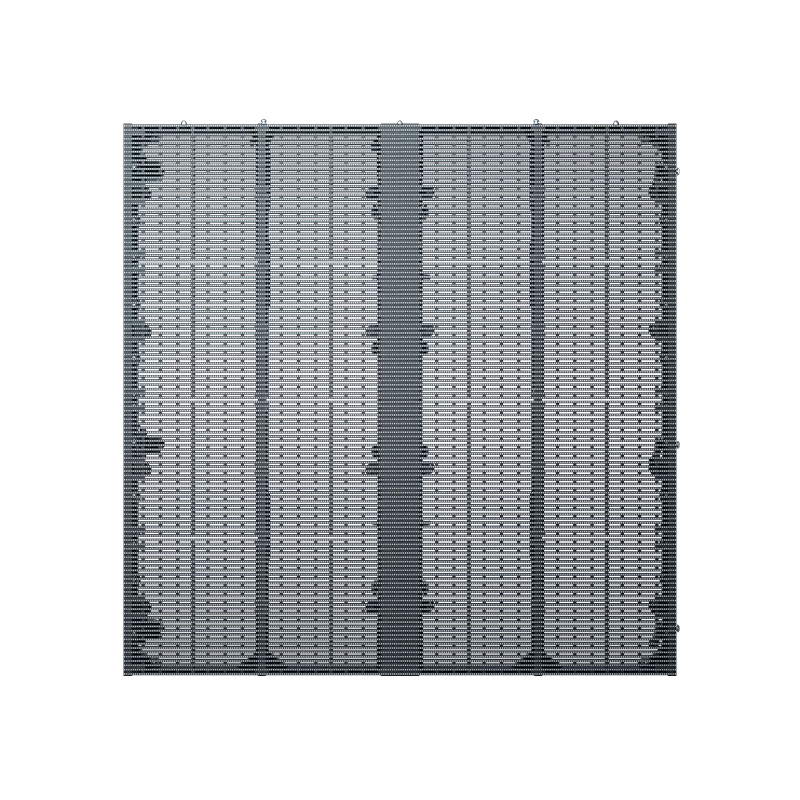

UR Pro Series cabinet sizes are 500*500mm and 500*1000mm, which can create concave & convex curve and right-angle. Plus, it can combine with flexible cabinets, perfectly realising more creative ideas.
Technical Parameters
| Type | Indoor | Indoor | Outdoor | Outdoor |
| Model | UR Pro 2.6 | UR Pro 2.9 | UR Pro 2.9 | UR Pro 3.9 |
| LED Type | SMD1515 (Black) | SMD2020 (Black) | SMD1516 (Black) | SMD1921 (Black) |
| Pixel Pitch(mm) | 2.604 | 2.976 | 2.976 | 3.906 |
| Panel Dimensions (WxHxD)/(mm) | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 |
| Pixels Per Panel | 192x192 / 192x384 | 168x168 / 168x336 | 168x168 / 168x336 | 128x128 / 128x256 |
| Panel Weight (kg) | 8.5kg / 12.5kg | 8.5kg / 12.5kg | 8.5kg / 12.5kg | 8.5kg / 12.5kg |
| Arc Lock | (+-6, +-3) | (+-6, +-3) | (+-6, +-3) | (+-6, +-3) |
| Module Dimensions (WxH)/(mm) | 250x500 | 250x500 | 250x500 | 250x500 |
| Processing | Novastar A10s-Pro | Novastar A10s-Pro | Novastar A10s-Pro | Novastar A10s-Pro |
| Brightness (cd/m²) | 1,000 | 1,000 | 4,000 | 4,000 |
| RefreshRate (Hz) | 15,360 Hz | 15,360 Hz | 15,360 Hz | 15,360 Hz |
| Gray scale(Bit) | 16 | 16 | 16 | 16 |
| Colour Bit depth (max) | ≥ 16 | ≥ 16 | ≥ 16 | ≥ 16 |
| Contrast Ratio | 6000:1 | 6000:1 | 5000:1 | 5000:1 |
| Viewing Angle (H/V) (°) | 140/140 | 140/140 | 140/140 | 140/140 |
| Drive Mode (Scan) | 1/16 | 1/16 | 1/16 | 1/8 |
| Power Consumption (Max./Avg.)(W/m2) | 600 / 200 | 600 / 200 | 680 / 220 | 680 / 220 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP65/IP65 | IP65/IP65 |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| PSU & Others Maintenance | Rear | Rear | Rear | Rear |
| Panel InstallationType | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
* Technical specifications are subject to change without prior notice. Please contact our sales team for the latest information. |
UR Pro Series Led Displays – FAQs
Who is the UR Pro Series most suitable for?
Can these LED cabinets be used indoors and outdoors?
How bright are the panels, and what makes the visual performance stand out?
Panels can reach brightness levels of up to 3,500 nits and run at a 15,360 Hz refresh rate, resulting in deeper contrast, clean motion handling and excellent on-camera performance.
Do the cabinets support curved or creative installations?
What cabinet sizes are available?
Two cabinet formats are available: 500 × 500 mm and 500 × 1,000 mm. They can be mixed freely thanks to the universal module structure, giving you flexibility in wall sizing and layout.
How straightforward is maintenance?
What protection features help extend lifespan?
How can I get pricing or technical guidance?
